SATA-1

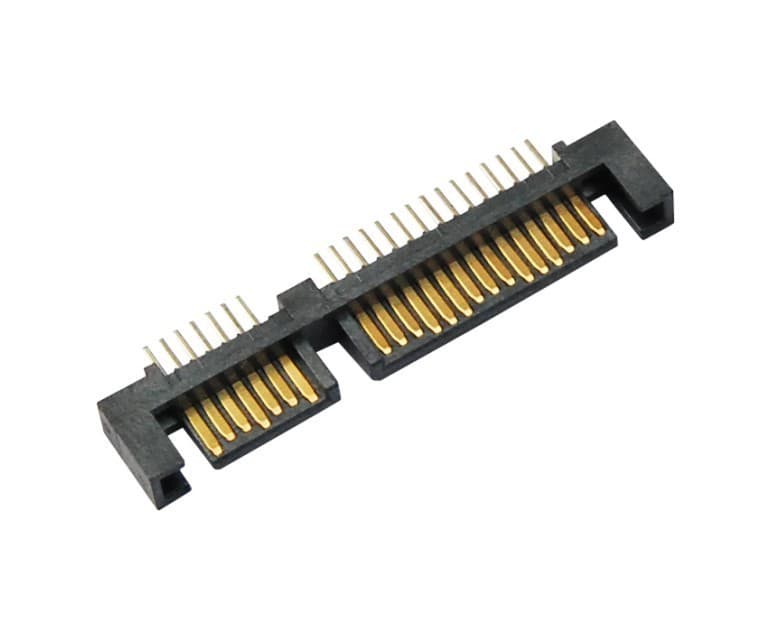

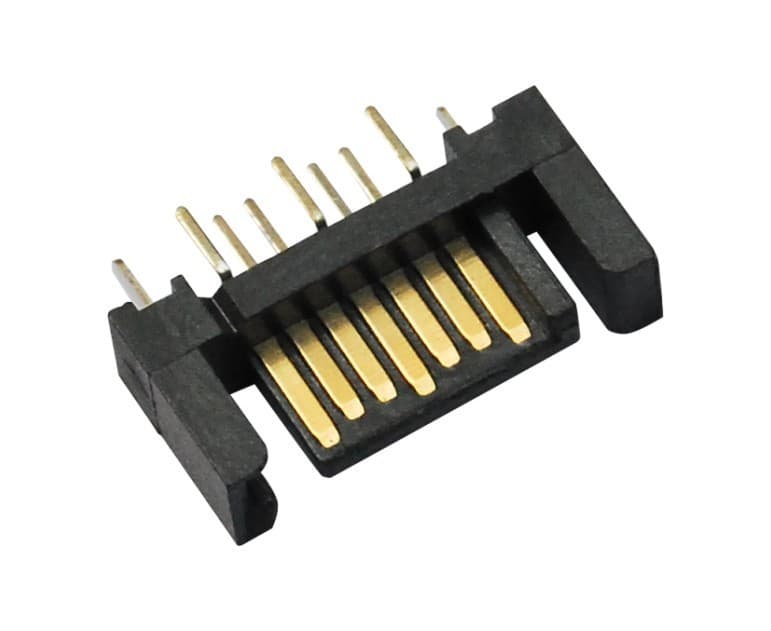

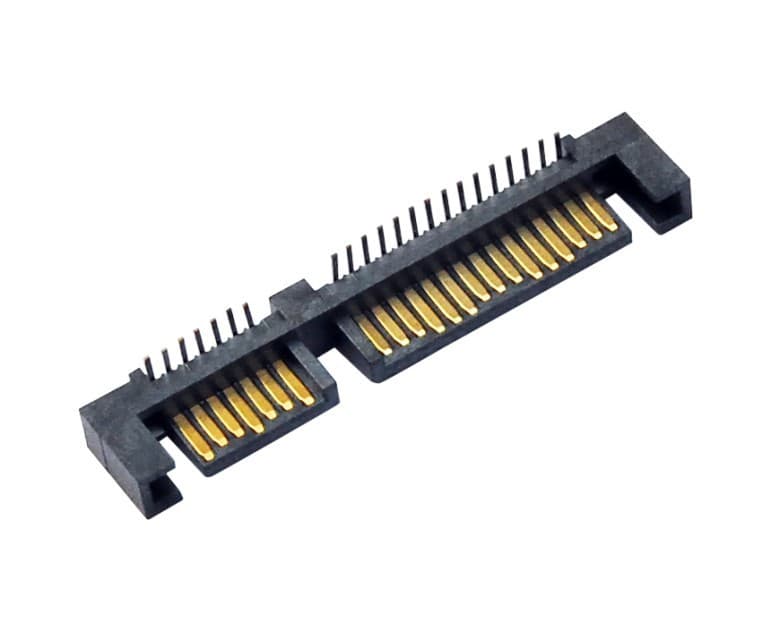

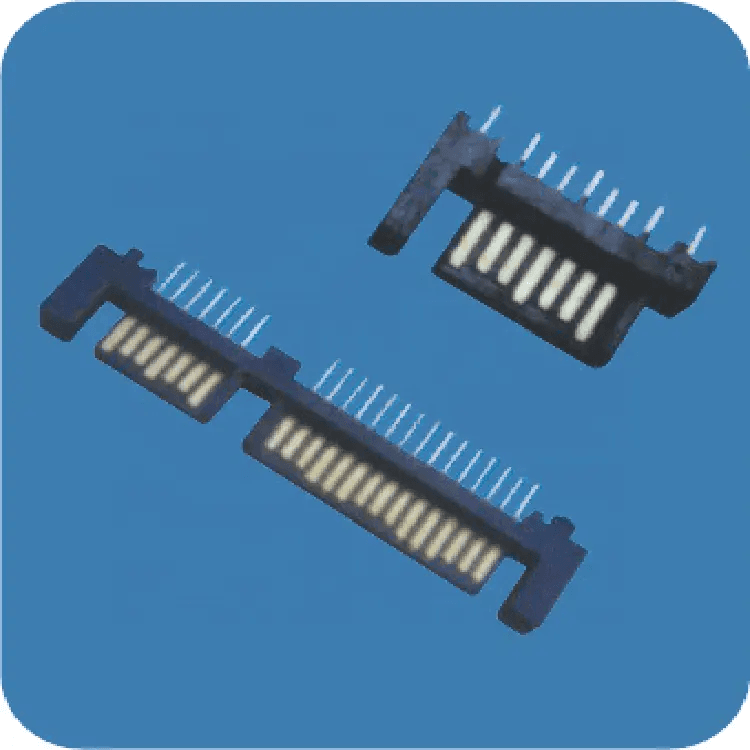

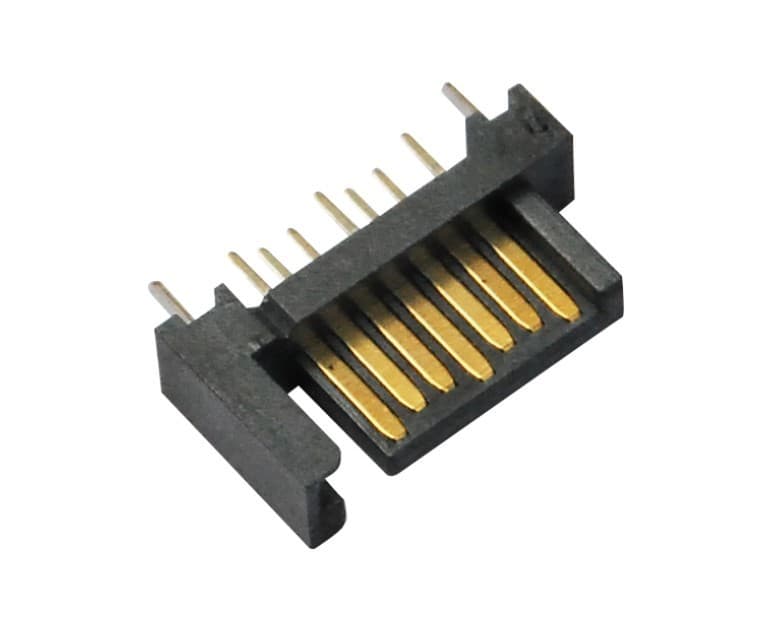

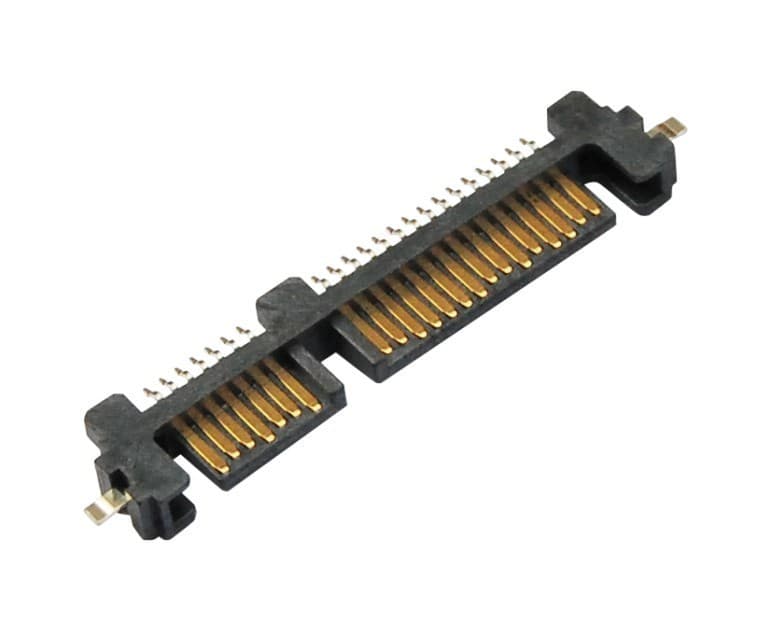

SATA Data Connector SATA-1
SATA data connector for HDD/storage signal connection, stable contact and easy mating, SMT compatible. ODM/OEM supported.
Product Overview
The SATA-1 is a SATA-standard data connector designed for high-speed data signal transmission of hard disk drives, SSDs and storage devices. It features a standardized interface, stable contact and easy mating, widely used in desktops, servers, industrial PCs and storage arrays.
Key Features
- SATA standard interface, compatible with mainstream HDD/storage devices
- High-speed data transmission with excellent signal integrity
- Stable contact, long service life and easy mating
- SMT compatible for high-volume production
- ODM/OEM customization supported
Specifications
- Pitch: 1.27mm
- Poles: 7P (SATA data)
- Current Rating: 1.5A (AC/DC)
- Voltage Rating: AC/DC 50V
- Working Temperature: -20°C to +84°C
- Contact Resistance: ≤0.02Ω
- Material: Phosphor bronze tinned terminal / high-temp plastic
Applications
- HDD, SSD & storage devices
- Desktops & servers
- Industrial PCs & storage arrays
- Data storage & security equipment
Packaging & Delivery
- MOQ: 1000 pcs
- Packaging: Bag + Carton
- Lead Time: 7-15 days
- Origin: Dongguan, Guangdong, China
- Shipping: DHL / UPS / FedEx
Specifications
| MOQ | 1000 pcs |
|---|---|
| Type | SATA Data Connector |
| Pitch | 1.27mm |
| Poles | 7P |
| Origin | Dongguan, Guangdong, China |
| Contact | Straight |
| Material | Phosphor bronze / high-temp plastic |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Rated Current | 1.5A AC/DC |
| Rated Voltage | AC/DC 50V |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20°C ~ +84°C |
Related products
0-5A-WTX-NP

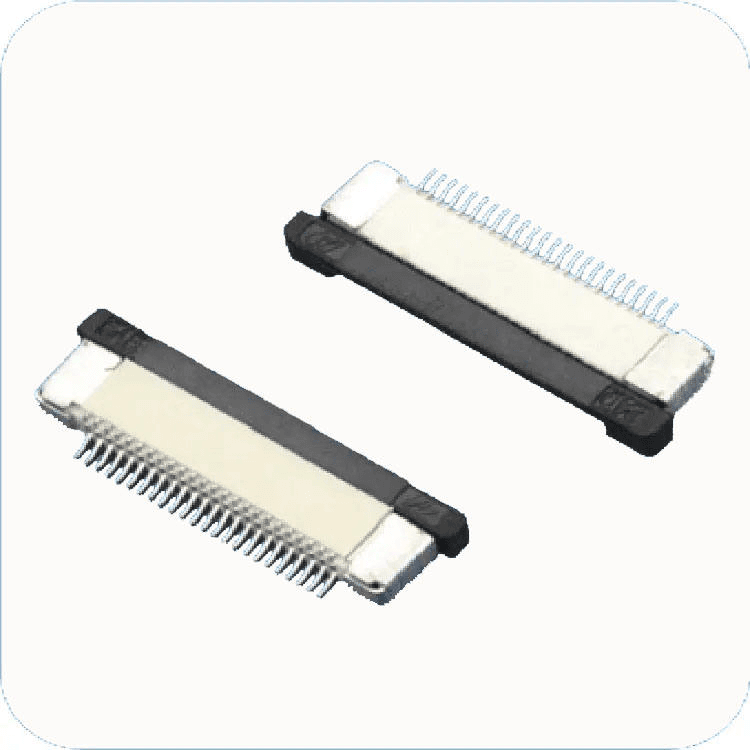

0.5mm Top-Contact FPC Connector 0.5A-WTX-NP
0.5mm pitch FPC flat cable connector with flip-lock (top-contact) design, 4-60 poles, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.
0-5C-WTS-NP

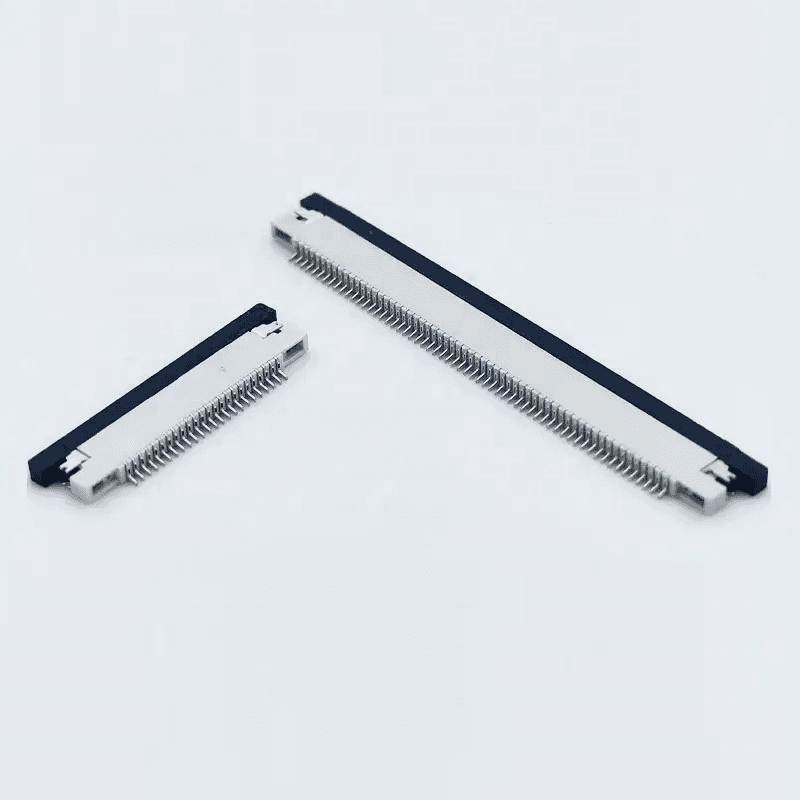

0.5mm C-Type FPC Connector 0.5C-WTS-NP
0.5mm pitch C-type flip-lock FPC flat cable connector, 4-60 poles, stable contact and easy mating, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.
0-5G-WT-11

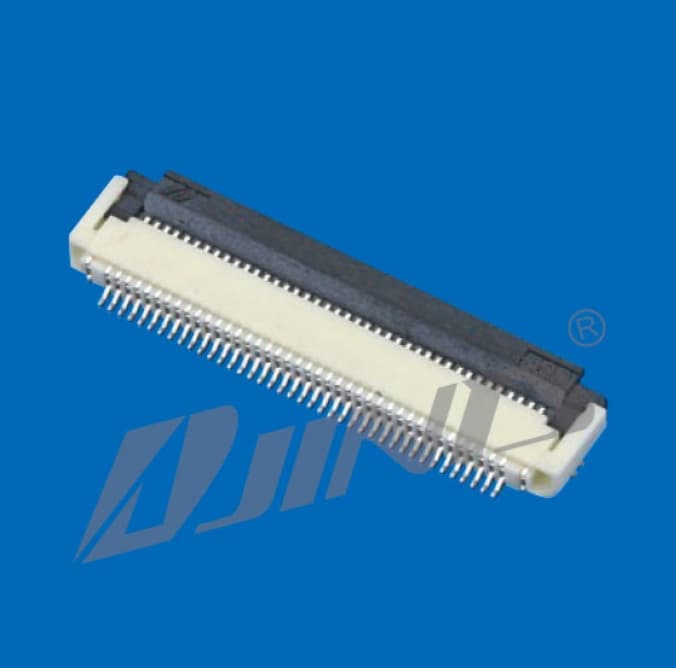

0.5mm G-Type FPC Connector FPC 0.5G-WT-11
.5mm pitch G-type FPC flat cable connector, 4-60 poles, stable contact and easy mating, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.
0-8B-H2-5MM-2

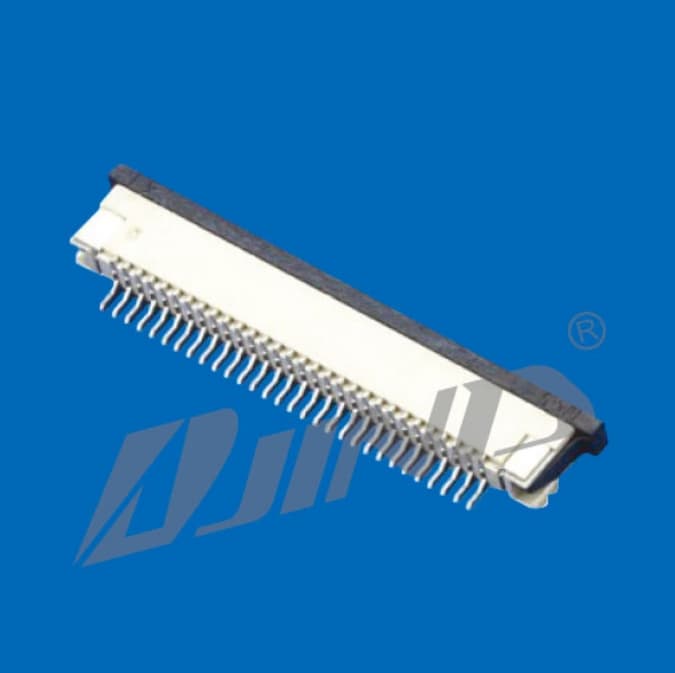

0.8mm H2.5mm FPC Connector FPC 0.8B-H2.5mm-2
