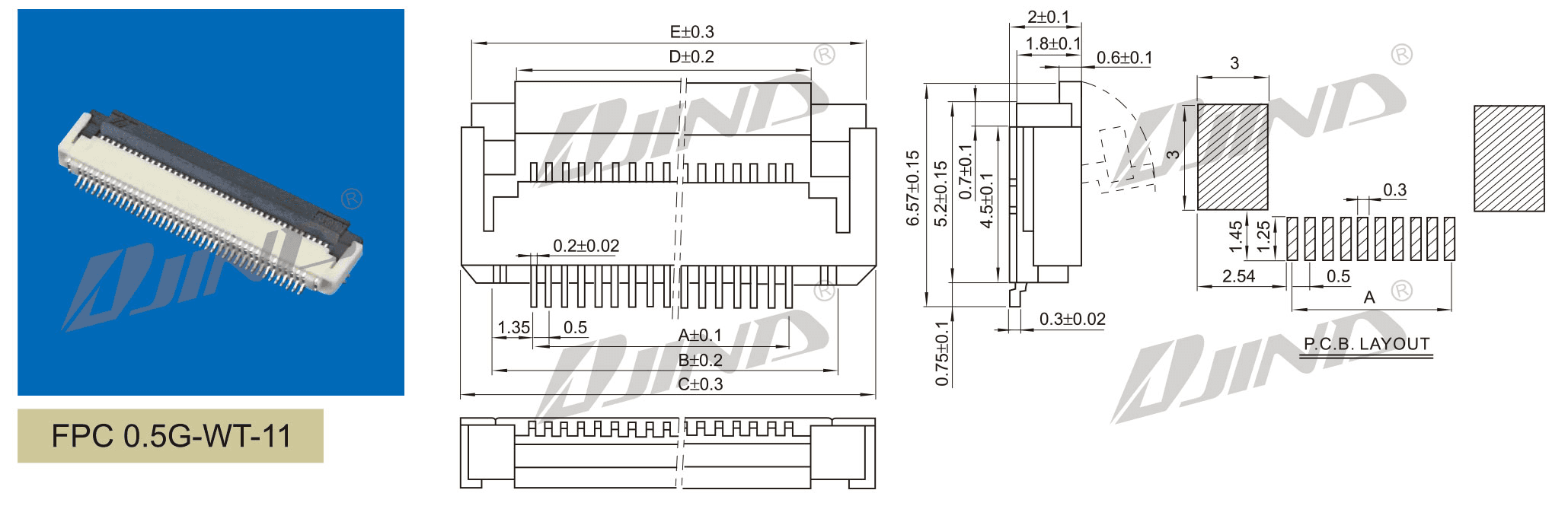

0-5G-WT-11
0.5mm G-Type FPC Connector FPC 0.5G-WT-11
.5mm pitch G-type FPC flat cable connector, 4-60 poles, stable contact and easy mating, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.

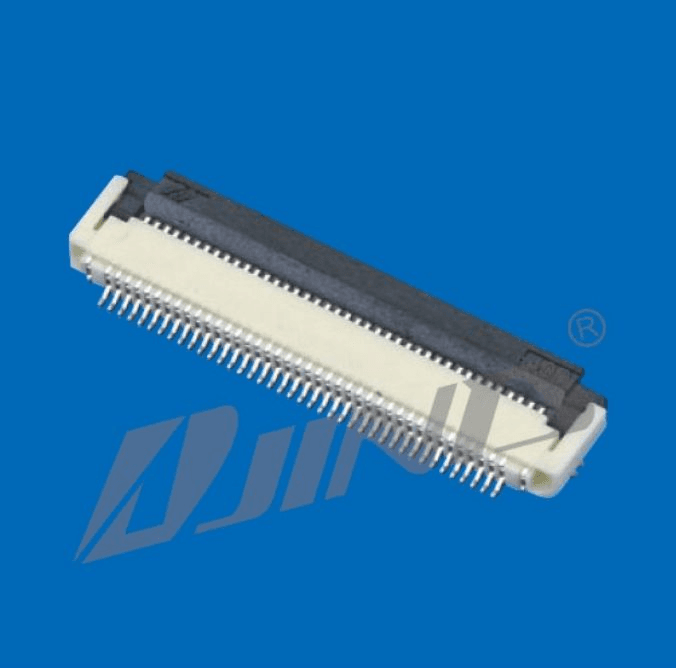

Product Overview
The FPC 0.5G-WT-11 is a 0.5mm pitch G-type FPC/FFC flat cable connector with a reliable locking design, providing stable contact and easy mating. Widely used in consumer electronics, smart home appliances, automotive electronics and industrial control.
Key Features
- 0.5mm fine pitch saves PCB space
- G-type locking design for easy insertion and reliable connection
- 4-60 poles available to fit various ribbon cables
- SMT compatible for high-volume production
- 9T high-temperature plastic housing
- ODM/OEM customization supported
Specifications
- Current Rating: 0.4A (AC/DC)
- Voltage Rating: AC/DC 50V (50Hz)
- Withstand Voltage: 200V AC/min
- Working Temperature: -20°C to +84°C
- Insulation Resistance: ≥500MΩ
- Contact Resistance: ≤0.02Ω
- Material: 9T plastic / phosphor bronze tinned terminal
- Pitch: 0.5mm
Applications
- LCD display modules & digital devices
- Smart home appliance control boards
- Automotive display & infotainment
- Industrial control & security equipment
Packaging & Delivery
- MOQ: 1000 pcs
- Packaging: Bag + Carton
- Lead Time: 7-15 days
- Origin: Dongguan, Guangdong, China
- Shipping: DHL / UPS / FedEx
Specifications
| MOQ | 1000 pcs |
|---|---|
| Type | Adapter |
| Pitch | 0.5mm |
| Poles | 4-60 |
| Origin | Dongguan, Guangdong, China |
| Contact | G-Type |
| Material | 9T high-temp plastic |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Rated Current | 0.4A AC/DC |
| Rated Voltage | AC/DC 50V (50Hz) |
| Withstand Voltage | 200V AC/min |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20°C ~ +84°C |
| Insulation Resistance | ≥500MΩ |
