0-5A-WTX-NP

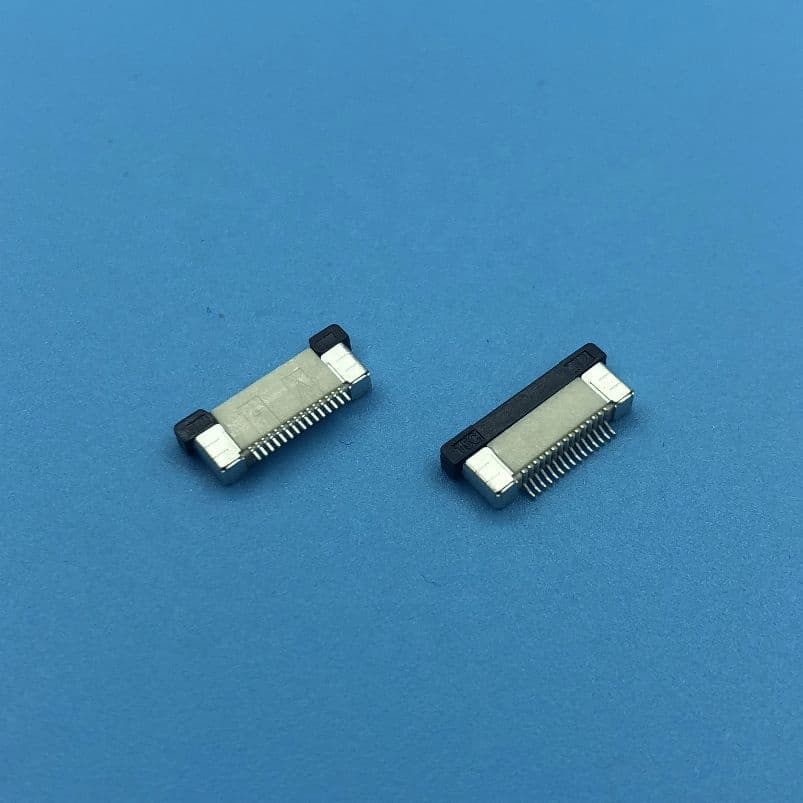

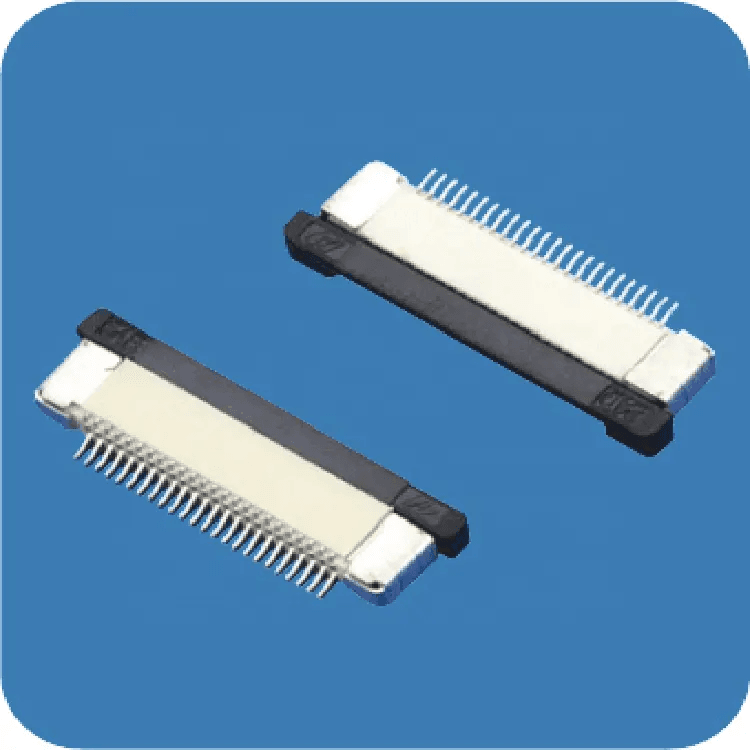

0.5mm Top-Contact FPC Connector 0.5A-WTX-NP
0.5mm pitch FPC flat cable connector with flip-lock (top-contact) design, 4-60 poles, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.
Product Overview
The 0.5A-WTX-NP is a 0.5mm pitch flip-lock FPC/FFC flat cable connector with a classic top-contact design. It provides stable contact and easy mating, widely used in consumer electronics, smart home appliances, automotive electronics and industrial control.
Key Features
- 0.5mm fine pitch saves PCB space
- Flip-lock design for easy insertion and reliable connection
- 4-60 poles available to fit various ribbon cables
- SMT compatible for high-volume production
- 9T high-temperature plastic housing
- ODM/OEM customization supported
Specifications
| MOQ | 1000 pcs |
|---|---|
| Type | Adapter |
| Pitch | 0.5mm |
| Poles | 4-60 |
| Origin | Dongguan, Guangdong, China |
| Contact | Top-Contact |
| Material | 9T high-temp plastic |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Rated Current | 0.4A AC/DC |
| Rated Voltage | AC/DC 50V (50Hz) |
| Withstand Voltage | 200V AC/min |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20°C ~ +84°C |
| Insulation Resistance | ≥500MΩ |
