40P-FPC-LVDS-ADAPTER

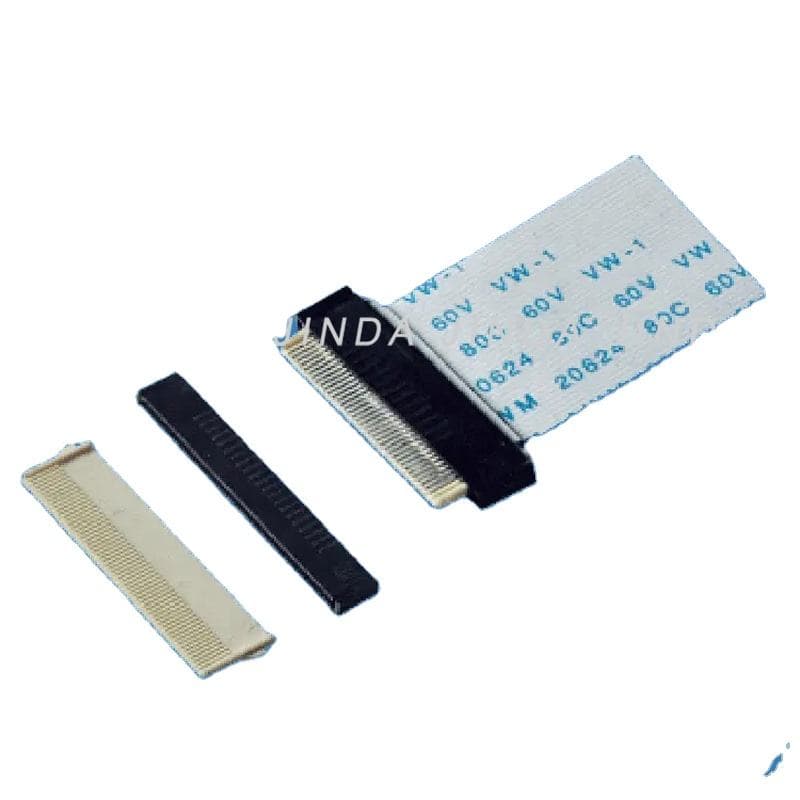

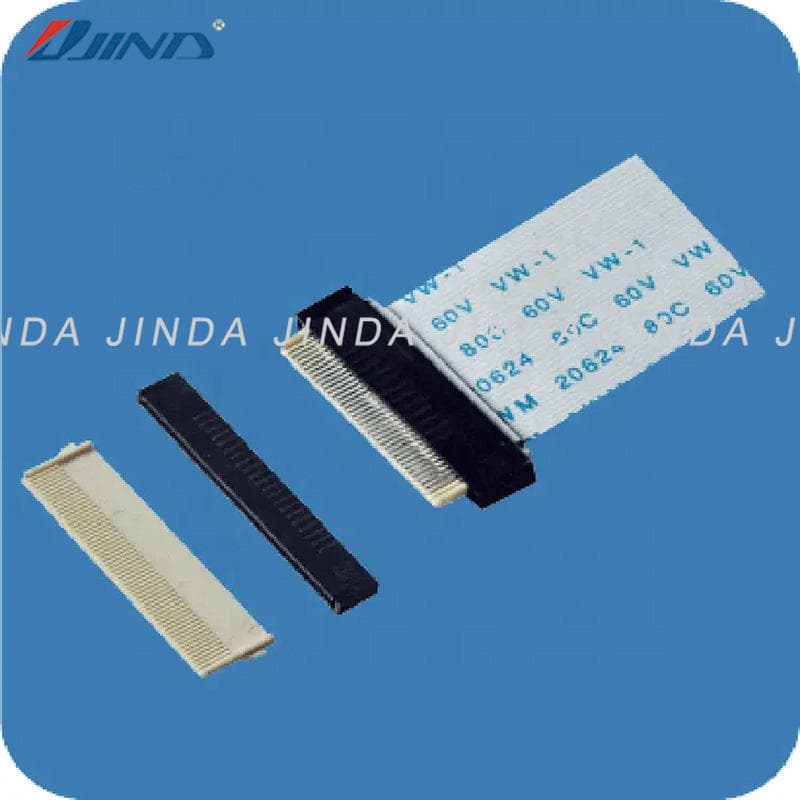

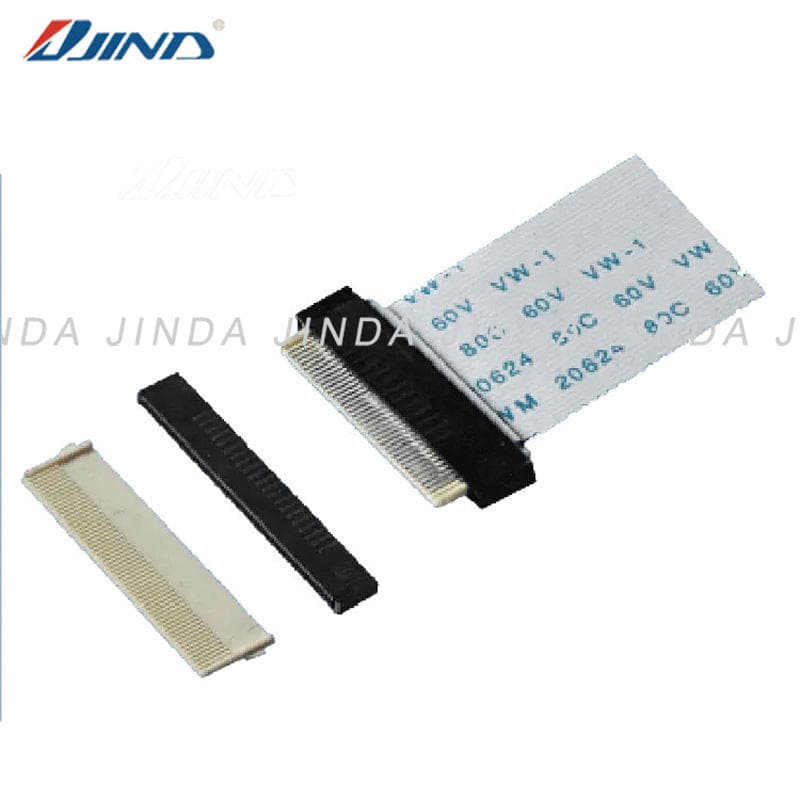

40P Male FPC LVDS Adapter 0.5mm

40P male FPC LVDS adapter, 0.5mm pitch, brass tin-plated

40P male FPC LVDS adapter connector, 0.5mm pitch, male design for high-speed LVDS signal. Brass tin-plated contact, rated current 0.5A, withstand 200V AC/min, insulation ≥500MΩ, contact ≤0.02Ω, -20℃~+84℃. For display, storage, industrial LVDS connection. ODM/OEM, MOQ 1000pcs, lead time 7-15 days.

Specifications

MOQ1000pcs
TypeAdapter
Pitch0.5mm
Poles40
GenderMale
Lead Time7-15 days
PackagingBag + Carton
ApplicationLVDS / FPC
Current Rating0.5A AC/DC
Voltage RatingAC,DC 50V (50Hz)
Place of OriginGuangdong, Dongguan, China
Contact MaterialBrass Tin-Plating
Withstand Voltage200V AC/min
Contact Resistance≤0.02Ω
Working Temperature-20℃ ~ +84℃
Insulation Resistance≥500MΩ
