1-25E-WT-10

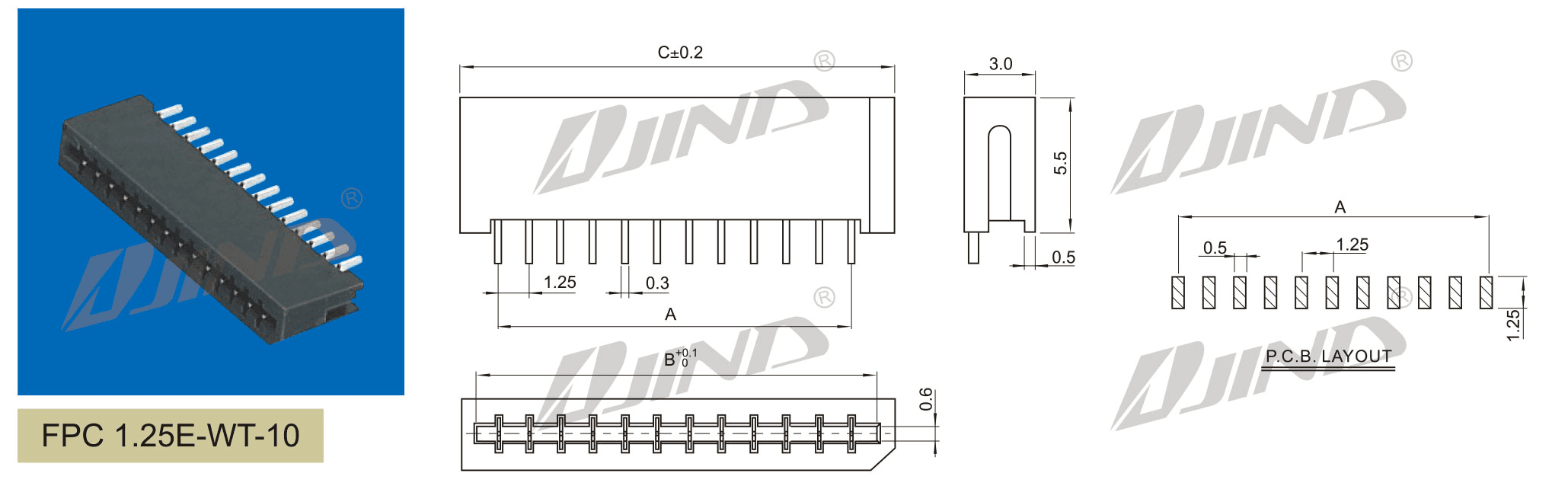

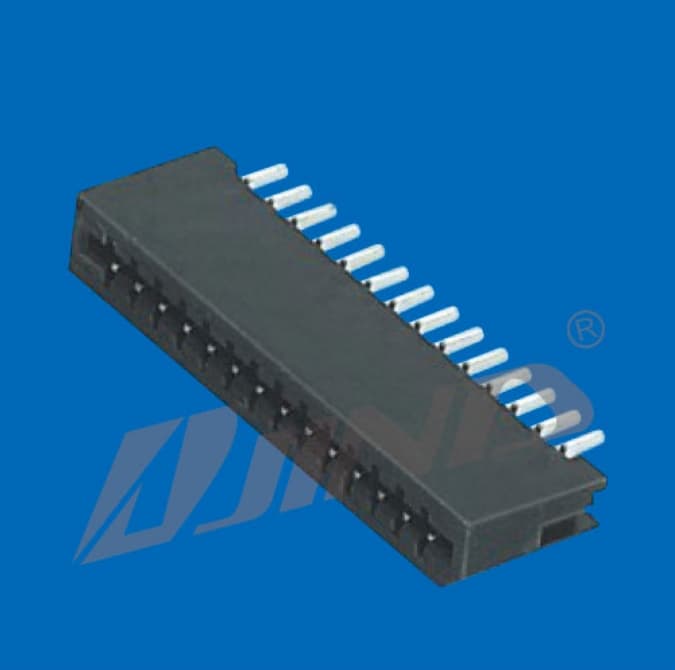

1.25mm E-Type Single/Dual-Row PCB FPC Connector FPC 1.25E-WT-10

1.25mm pitch E-Type FPC connector, 9T hi-temp, 4-60 poles

1.25mm pitch E-Type FPC connector for single/dual-row PCB mounting, compact and reliable. 9T hi-temp material, rated current 0.4A, withstand 200V AC/min, insulation ≥500MΩ, contact ≤0.02Ω, -20℃~+84℃, 4-60 poles. FPC/FFC connection. ODM/OEM, MOQ 1000pcs, lead time 7-15 days.

Specifications

MOQ1000pcs
TypeAdapter
Poles4-60
GenderMale/Female
Material9T Hi-temp Material
Lead Time7-15 days
PackagingBag + Carton
ApplicationFPC / FFC
Current Rating0.4A AC/DC
Voltage RatingAC,DC 50V (50Hz)
Place of OriginGuangdong, Dongguan, China
Withstand Voltage200V AC/min
Contact Resistance≤0.02Ω
Working Temperature-20℃ ~ +84℃
Insulation Resistance≥500MΩ
