1-25A-WX-3

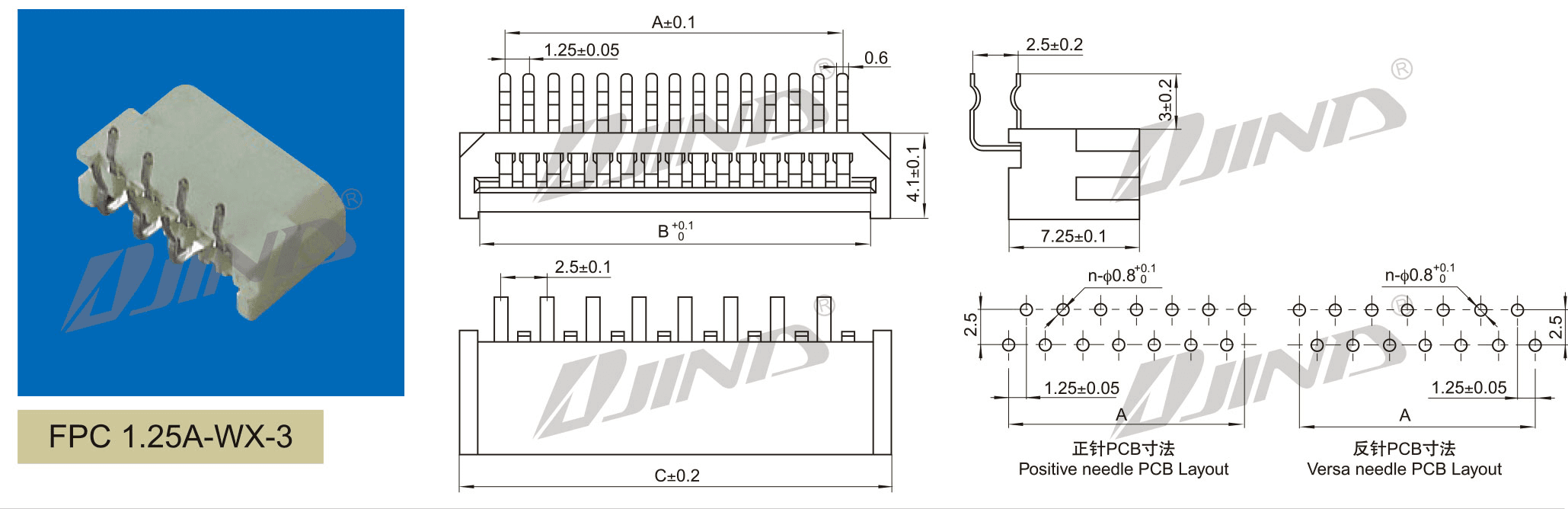

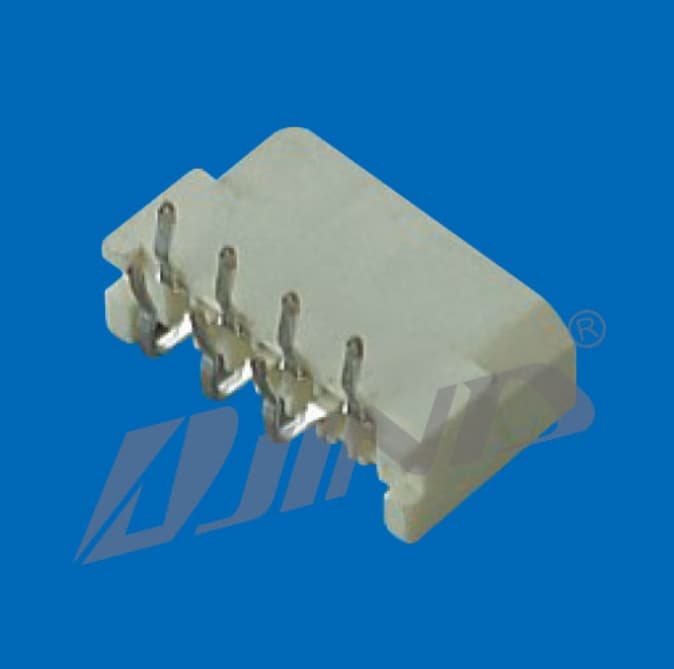

Hi-Temp 1.25mm Lock FPC Connector Male-Female FPC 1.25A-WX-3
Hi-temp 1.25mm lock FPC connector, male/female, 4-40P
Hi-temp 1.25mm pitch single-side vertical 180° staggered 4-40P lock FPC connector, male/female pair, locking structure. 9T hi-temp material, rated current 0.4A, withstand 200V AC/min, insulation ≥500MΩ, contact ≤0.02Ω, -20℃~+84℃. For hi-temp FPC/FFC connection. ODM/OEM, MOQ 1000pcs, lead time 7-15 days.
Specifications
| MOQ | 1000pcs |
|---|---|
| Type | Adapter |
| Pitch | 1.25mm |
| Poles | 4-40 |
| Gender | Male/Female |
| Material | 9T Hi-temp Material |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Application | FPC / FFC |
| Current Rating | 0.4A AC/DC |
| Voltage Rating | AC,DC 50V (50Hz) |
| Place of Origin | Guangdong, Dongguan, China |
| Withstand Voltage | 200V AC/min |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20℃ ~ +84℃ |
| Insulation Resistance | ≥500MΩ |
