1-25A-WX

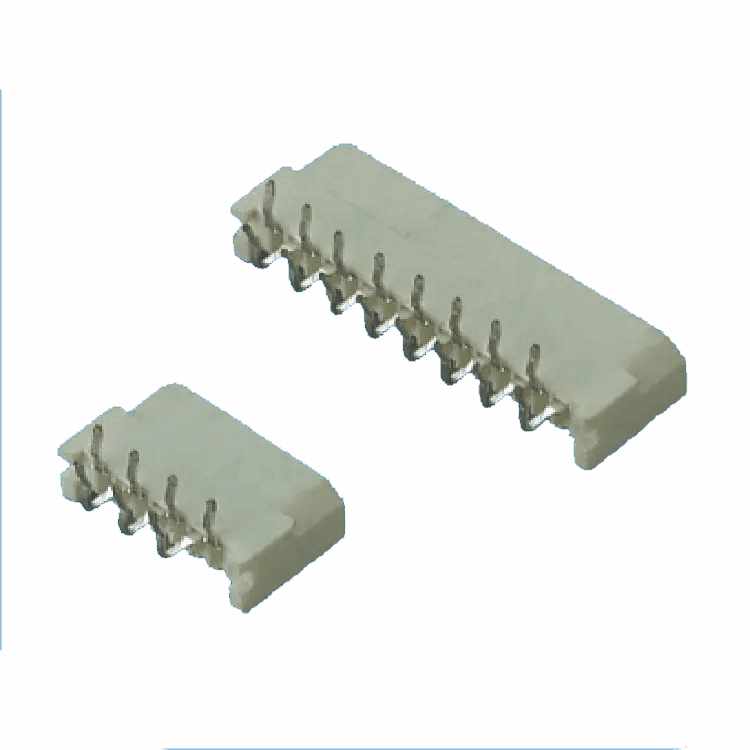

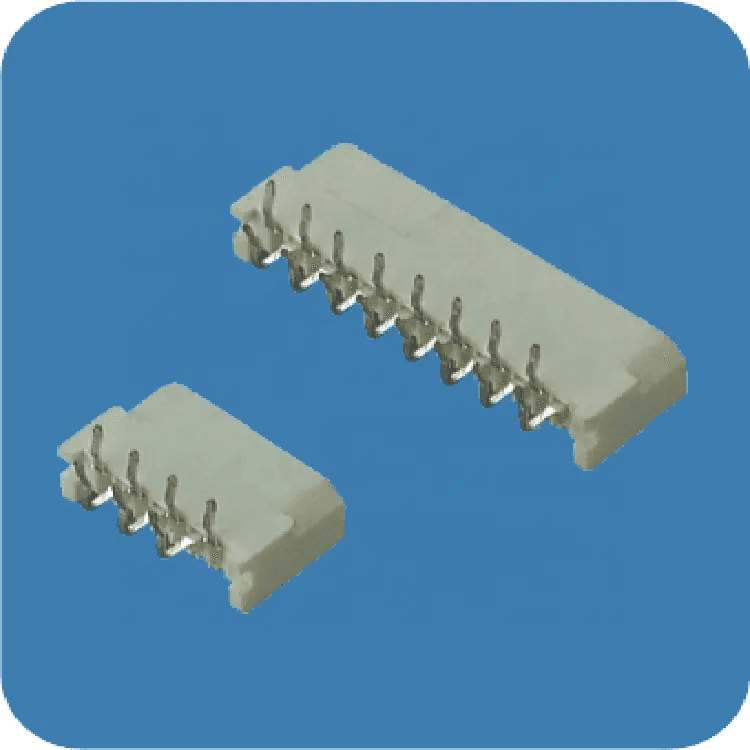

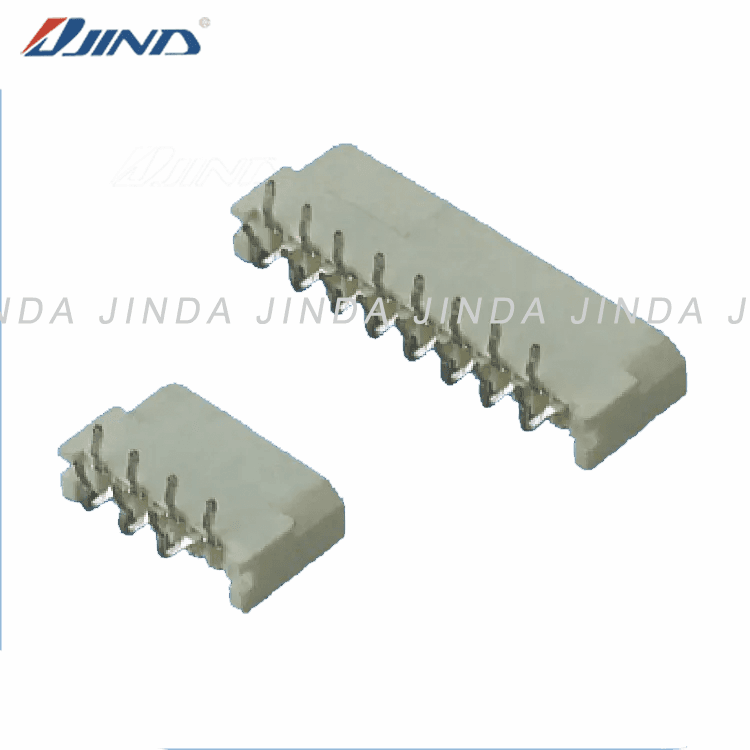

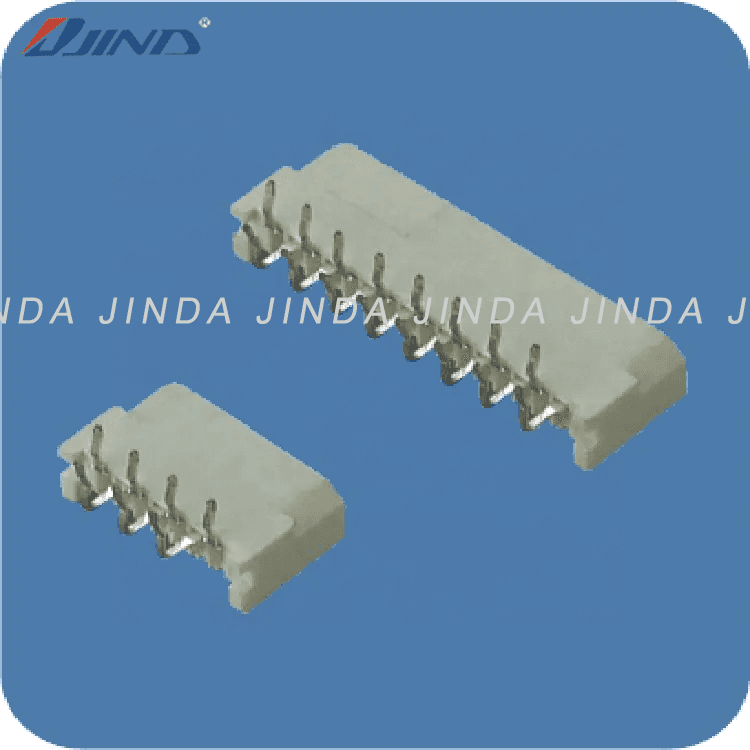

1.25mm A-Type Slide-Lock FPC Connector FPC 1.25A-WX

1.25mm pitch slide-lock FPC connector, brass tin-plated, 4-60 poles

1.25mm pitch A-Type slide-lock FPC connector, locking structure for secure mating. Brass tin-plated contact, rated current 0.5A, withstand 200V AC/min, insulation ≥500MΩ, contact ≤0.02Ω, -20℃~+84℃, 4-60 poles. FPC/FFC connection. ODM/OEM, MOQ 1000pcs, lead time 7-15 days.

Specifications

MOQ1000pcs
TypeAdapter
Poles4-60
GenderMale
Lead Time7-15 days
PackagingBag + Carton
ApplicationFPC / FFC
Current Rating0.5A AC/DC
Voltage RatingAC,DC 50V (50Hz)
Place of OriginGuangdong, Dongguan, China
Contact MaterialBrass Tin-Plating
Withstand Voltage200V AC/min
Contact Resistance≤0.02Ω
Working Temperature-20℃ ~ +84℃
Insulation Resistance≥500MΩ
