1-25A-WS-2

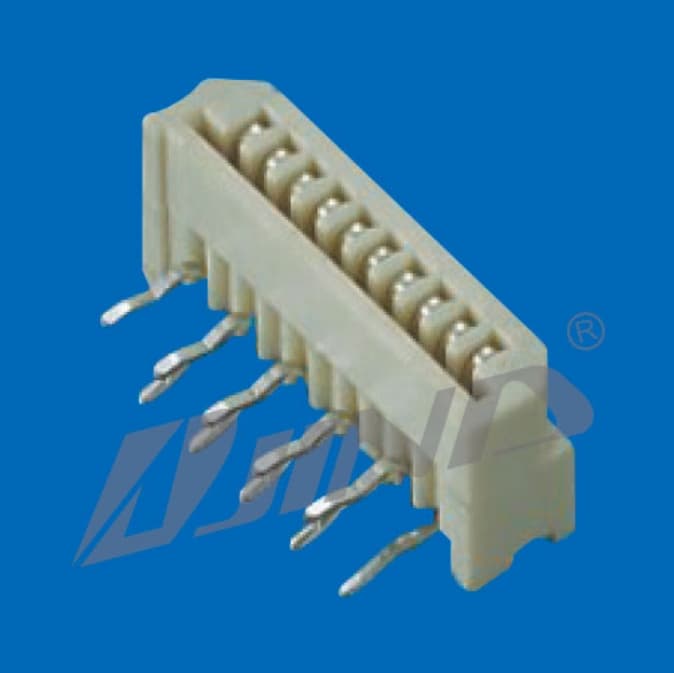

1.25mm Slide-Lock FPC Connector FPC 1.25A-WS-2
1.25mm pitch slide-lock FPC flat cable connector, 4-60 poles, stable contact and easy mating, for FFC/FPC ribbon connection, SMT compatible. ODM/OEM supported.
Product Overview
The FPC 1.25A-WS-2 is a 1.25mm pitch slide-lock FPC/FFC flat cable connector. Its sliding locking design provides firm locking and easy mating, widely used in consumer electronics, smart home appliances, automotive electronics and industrial control.
Key Features
- 1.25mm pitch saves PCB space
- Slide-lock design for firm locking and reliable connection
- 4-60 poles available to fit various ribbon cables
- SMT compatible for high-volume production
- 9T high-temperature plastic housing
- ODM/OEM customization supported
Specifications
- Current Rating: 0.4A (AC/DC)
- Voltage Rating: AC/DC 50V (50Hz)
- Withstand Voltage: 200V AC/min
- Working Temperature: -20°C to +84°C
- Insulation Resistance: ≥500MΩ
- Contact Resistance: ≤0.02Ω
- Material: 9T plastic / phosphor bronze tinned terminal
- Pitch: 1.25mm
Applications
- LCD display modules & digital devices
- Smart home appliance control boards
- Automotive display & infotainment
- Industrial control & security equipment
Packaging & Delivery
- MOQ: 1000 pcs
- Packaging: Bag + Carton
- Lead Time: 7-15 days
- Origin: Dongguan, Guangdong, China
- Shipping: DHL / UPS / FedEx
Specifications
| MOQ | 1000 pcs |
|---|---|
| Type | Adapter |
| Pitch | 1.25mm |
| Poles | 4-60 |
| Origin | Dongguan, Guangdong, China |
| Contact | Slide-Lock |
| Material | 9T high-temp plastic |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Rated Current | 0.4A AC/DC |
| Rated Voltage | AC/DC 50V (50Hz) |
| Withstand Voltage | 200V AC/min |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20°C ~ +84°C |
| Insulation Resistance | ≥500MΩ |
