1-0B-LT-NP

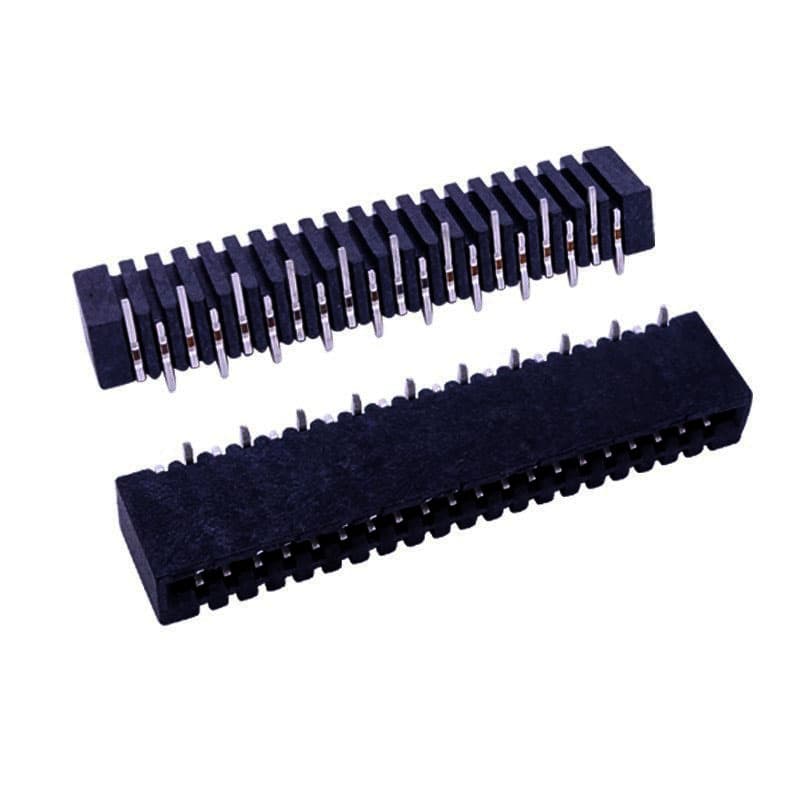

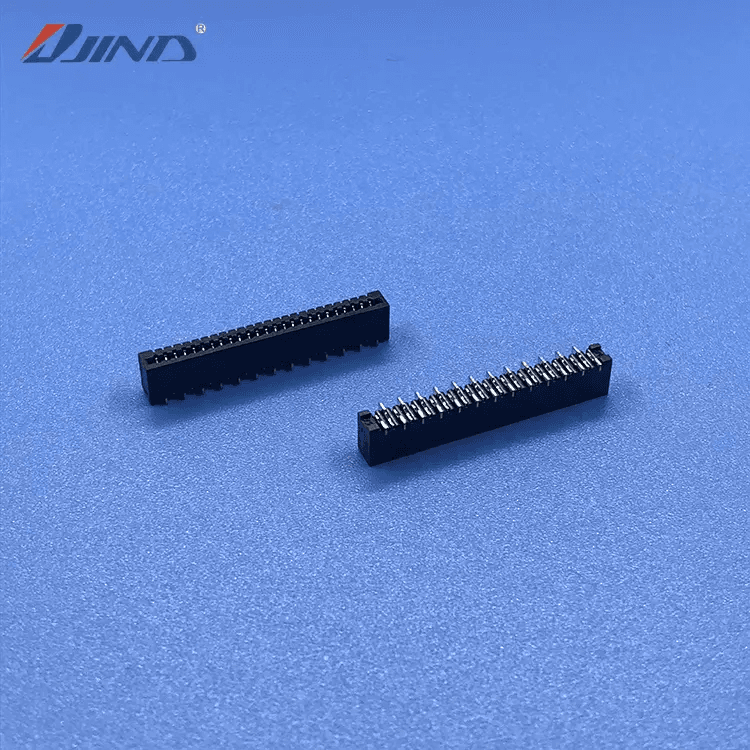

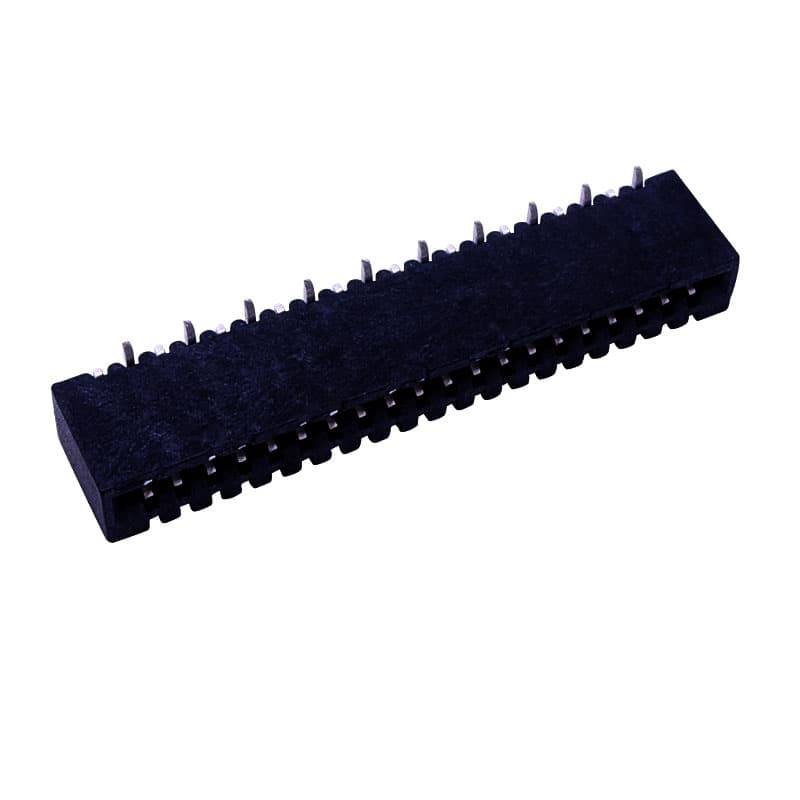

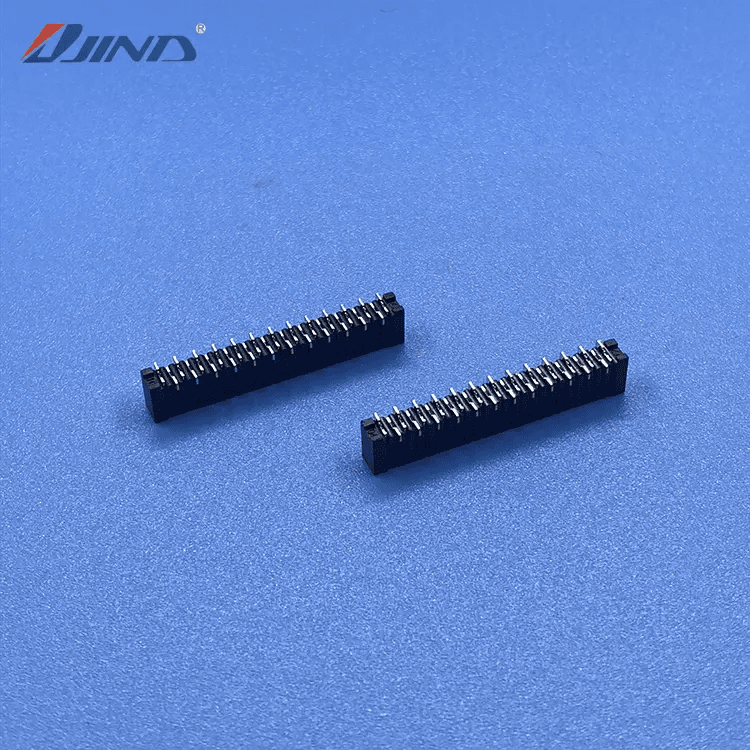

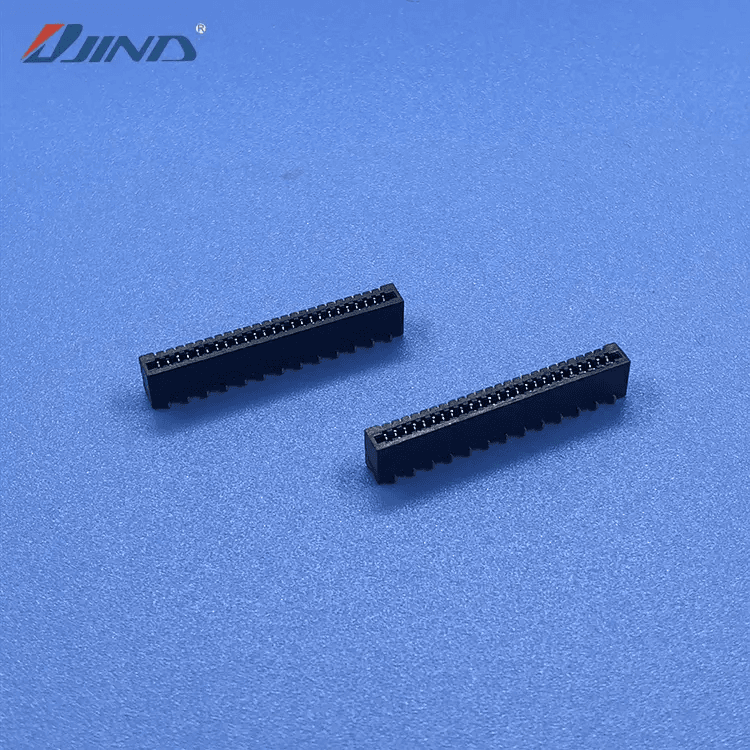

1.0mm B-Type Vertical FPC Connector FPC 1.0B-LT-NP
1.0mm pitch vertical FPC connector, brass tin-plated, 4-60 poles
1.0mm pitch B-Type vertical FPC connector, brass tin-plated contact, PA66 housing, rated current 0.5A, withstand 200V AC/min, insulation ≥800MΩ, contact ≤0.02Ω, -20℃~+84℃, 4-60 poles. FPC/FFC connection. ODM/OEM, MOQ 1000pcs, lead time 7-15 days.
Specifications
| MOQ | 1000pcs |
|---|---|
| Type | Adapter |
| Poles | 4-60 |
| Gender | Male |
| Lead Time | 7-15 days |
| Packaging | Bag + Carton |
| Application | FPC / FFC |
| Current Rating | 0.5A AC/DC |
| Voltage Rating | AC,DC 50V (50Hz) |
| Place of Origin | Guangdong, Dongguan, China |
| Contact Material | Brass Tin-Plating |
| Housing Material | PA66 |
| Withstand Voltage | 200V AC/min |
| Contact Resistance | ≤0.02Ω |
| Working Temperature | -20℃ ~ +84℃ |
| Insulation Resistance | ≥800MΩ |
