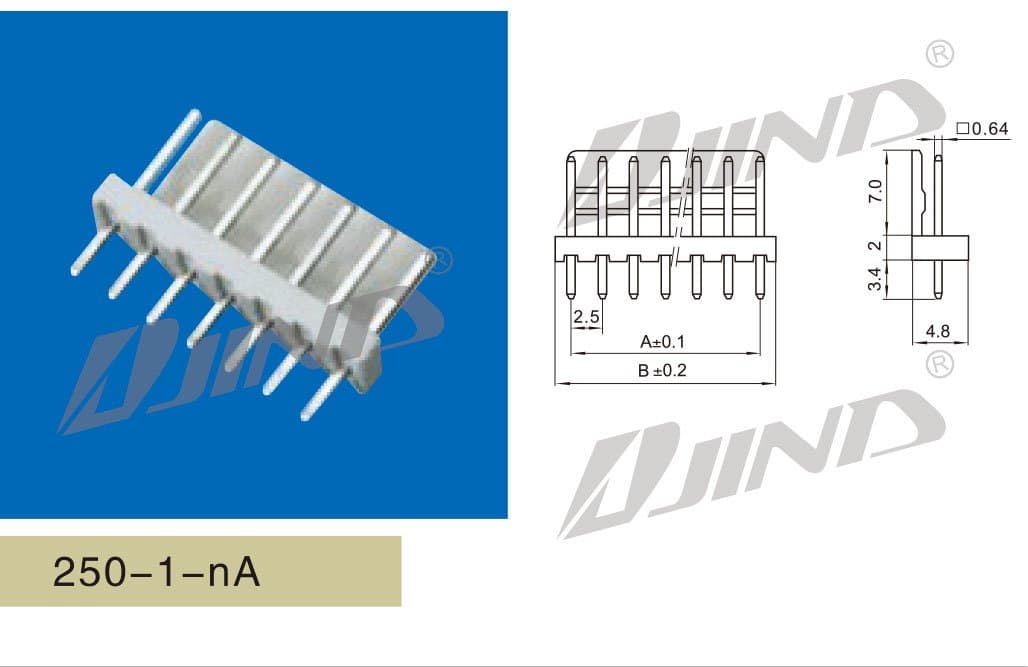

250-1-NA
2.5mm Pitch 250-1-nA Vertical Through-Hole Male Header, nP Customizable
250-1-nA 2.5mm pitch vertical through-hole male header, tin-plated pins, nP customizable, wire-to-board.

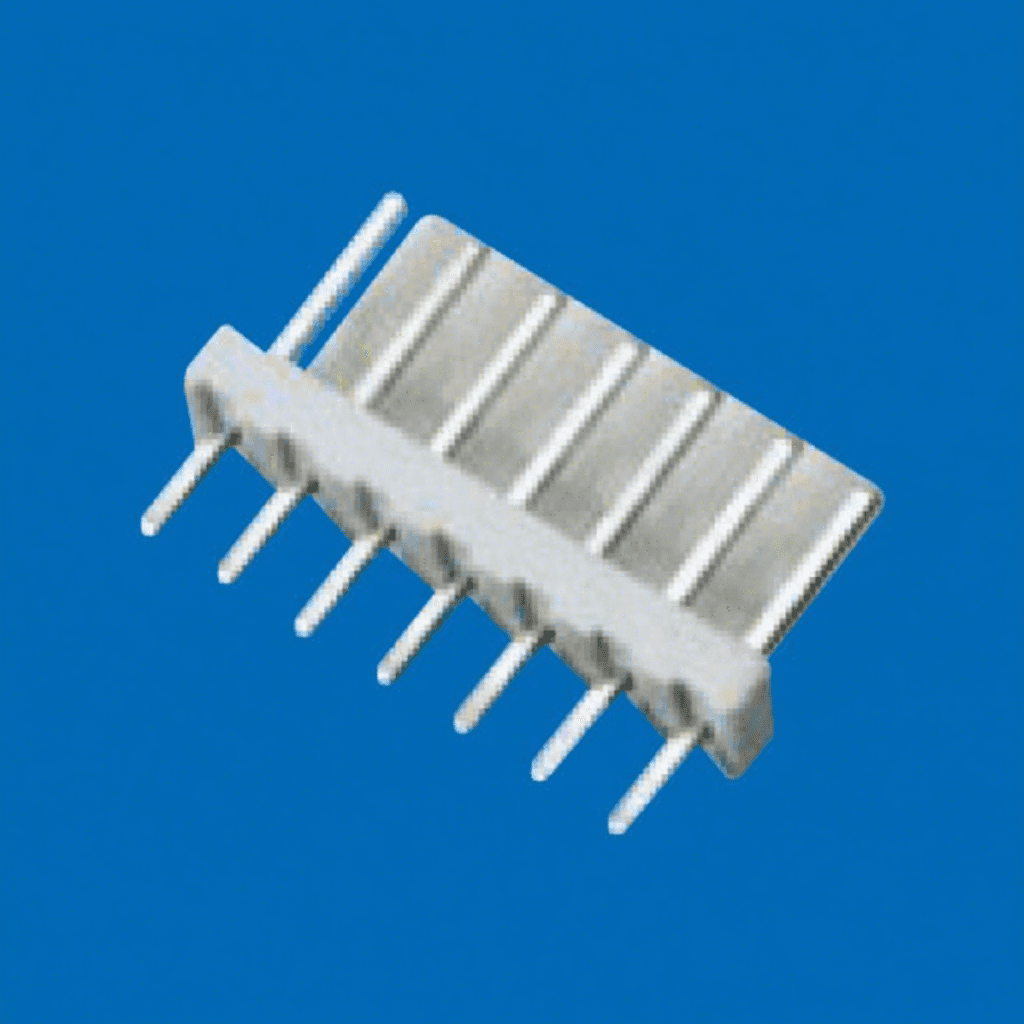

The JINDA 250-1-nA is a 2.5mm pitch white PA66 nylon vertical through-hole board-mount male wafer with tin-plated round pins, nP customizable and a locating frame for clear alignment and stable contact. Used in 2.5mm-pitch wire-to-board connections for LED lighting, home appliances, security, industrial control and automotive electronics. ODM/OEM pin-count customization supported. MOQ 1000pcs, lead time 7-15 days, shipped by DHL/UPS/FedEx.
Specifications
| MOQ | 1000pcs |
|---|---|
| Type | Vertical through-hole male wafer (board-mount) |

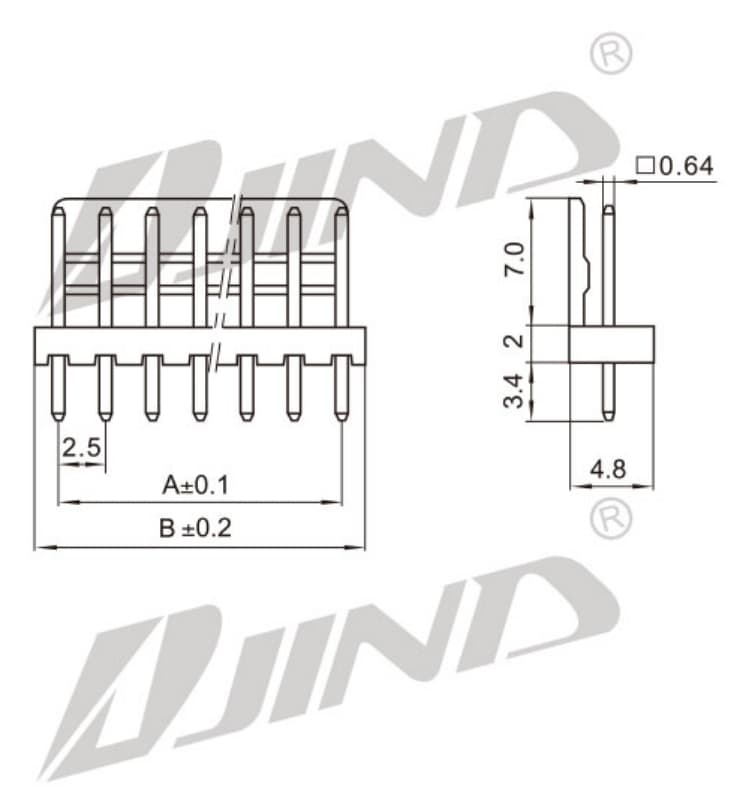

| Pitch | 2.5mm (drawing 2.5) |
| Poles | nP customizable (n = variable positions) |
| Series | 250-1 |
| Material | Tin-plated brass contacts + PA66 nylon body (inferred) |
| Lead Time | 7-15 days |
| Logistics | DHL/UPS/FedEx |
| ODM & OEM | Supported, custom per drawing |
| Packaging | Polybag + Export Carton |
| Current Rating | 3A (inferred) |
| Voltage Rating | 250VAC (inferred) |
| Place of Origin | Dongguan, Guangdong, China |
