2-0T-5-WL5-2-0MM

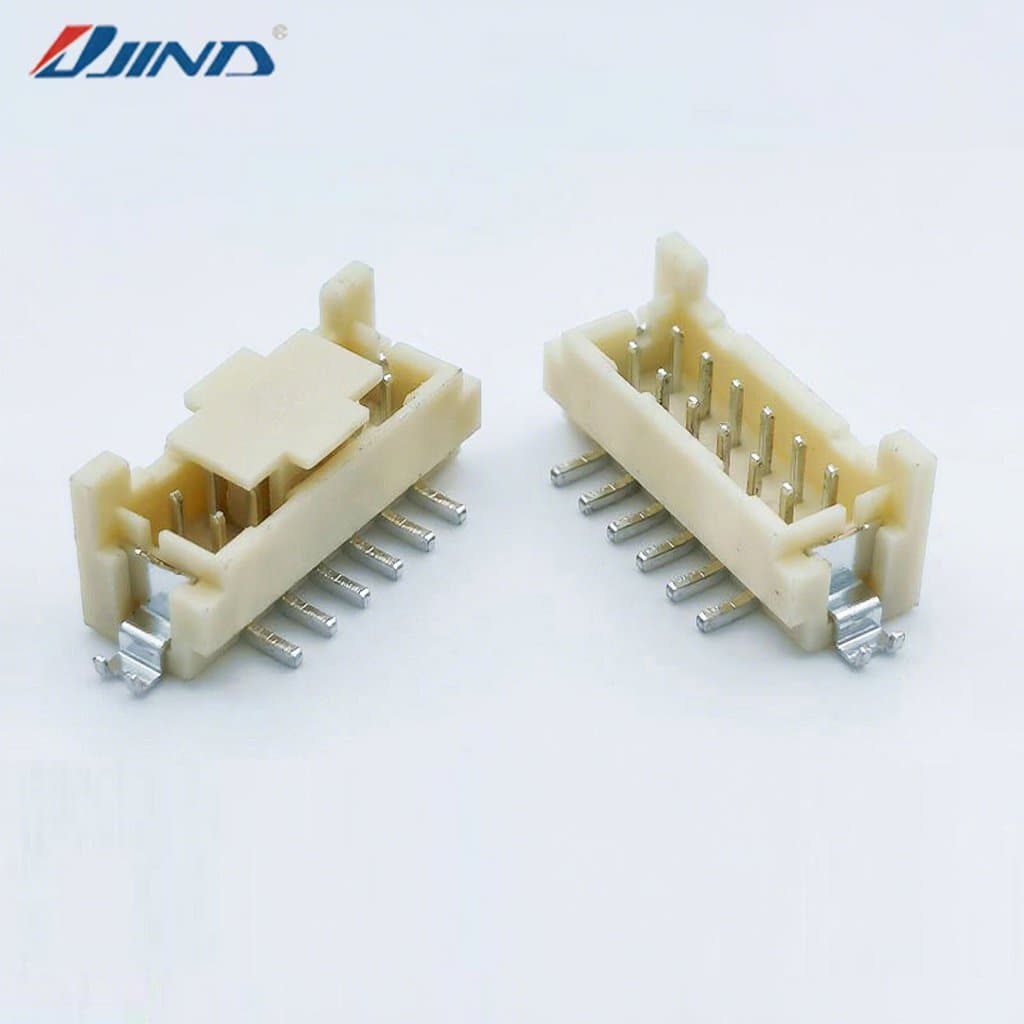

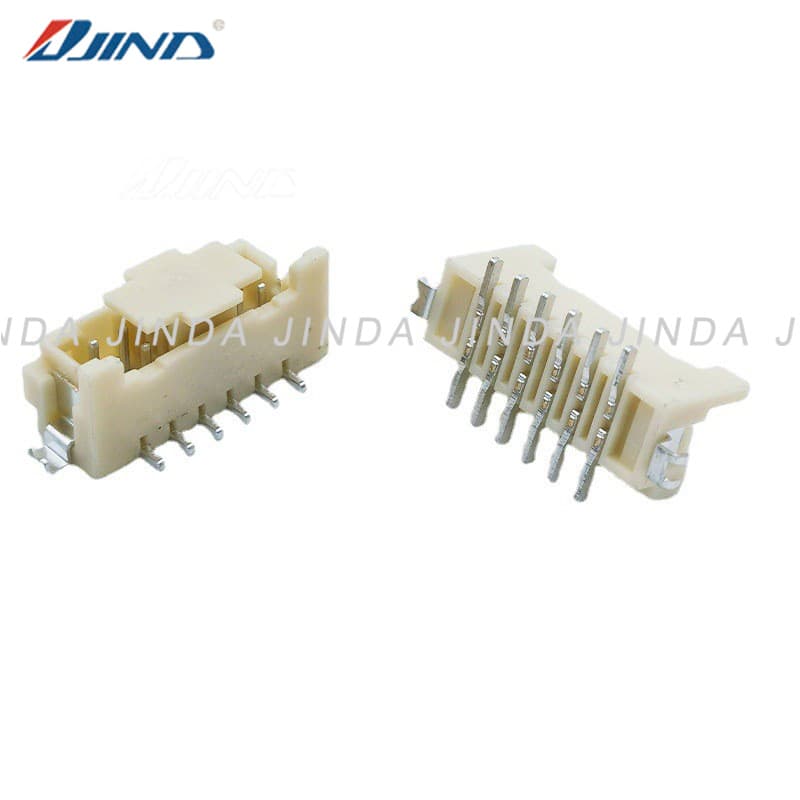

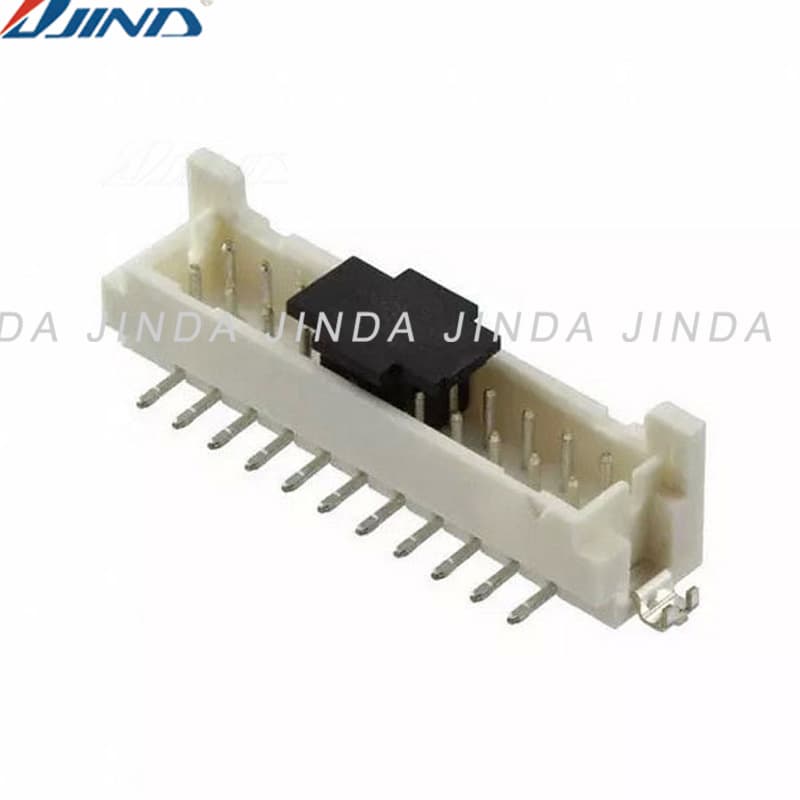

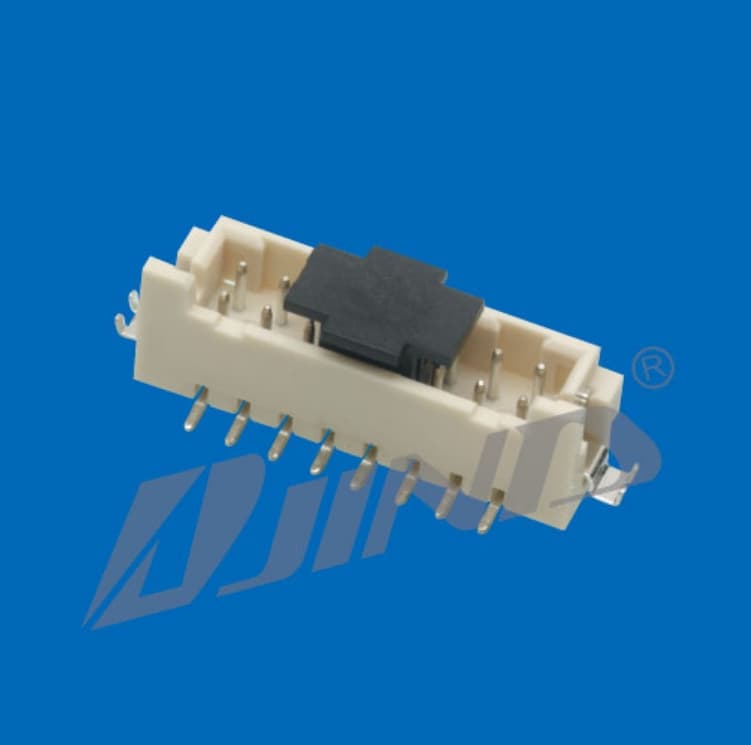

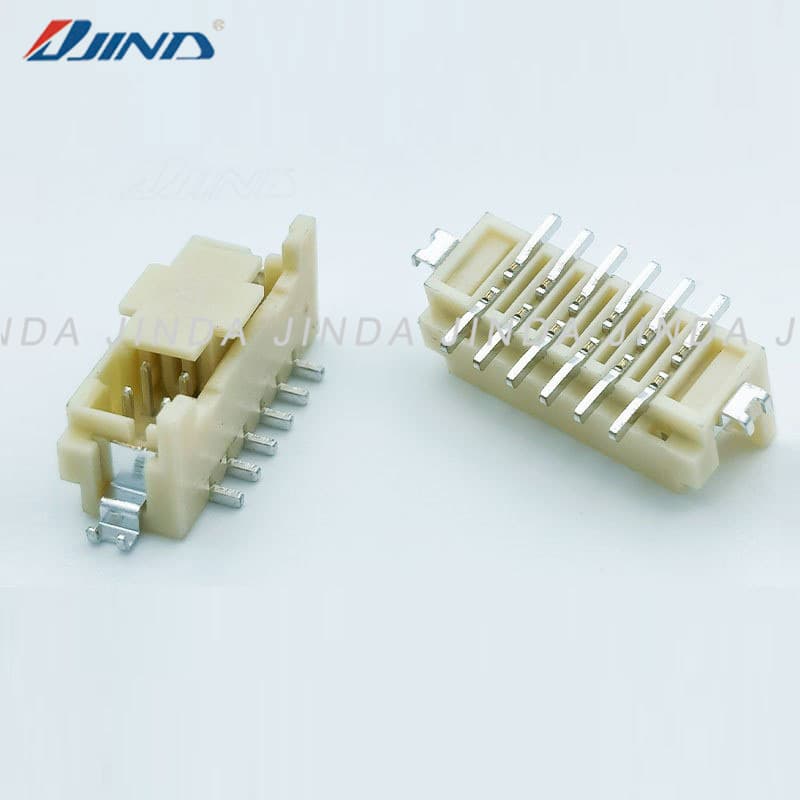

2.0mm Pitch Dual-Row Through-Hole Board Header (2.0mm Version, with Mount Ears) 2.0T-5-WL5
2.0mm pitch dual-row through-hole board wafer header 2.0mm version with mount ears, 2x4P-2x20P, firm and vibration-resistant.
The JINDA 2.0T-5-WL5 2.0mm is a 2.0mm pitch dual-row through-hole board wafer header (2.0mm spec version) with vibration-resistant metal mount ears, tin-plated brass contacts and a PA66 heat-resistant body, 2x4P-2x20P optional. It suits PCB-harness mating in appliances, LED drivers, power, security and industrial control; firm soldering and stable mating. ODM/OEM customization by pole count and board layout is supported. MOQ 1000pcs, lead time 7-15 days, shipped by DHL/UPS/FedEx.
Specifications
| MOQ | 1000pcs |
|---|---|
| Type | Dual-row through-hole board wafer header with mount ears (2.0mm version) |
| Pitch | 2.0mm |

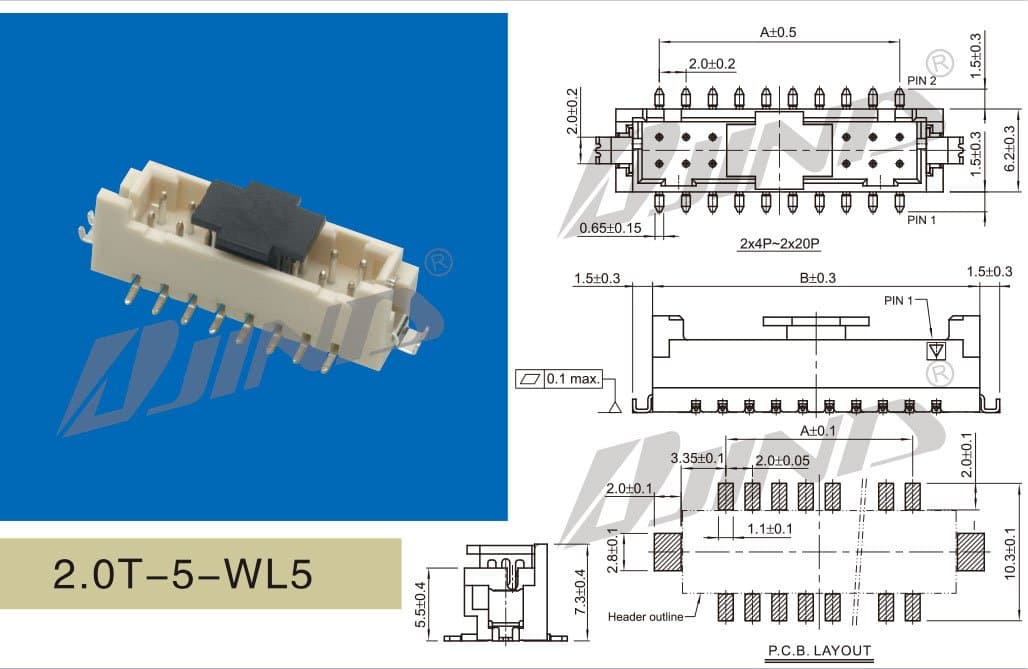

| Poles | 2x4P-2x20P (drawing) |
| Series | 2.0T-5-WL5 |
| Material | Tin-plated brass contacts + PA66 body (default, inferred) |
| Lead Time | 7-15 days |
| Logistics | DHL/UPS/FedEx |
| ODM & OEM | Supported, custom per drawing |
| Packaging | Polybag + Export Carton |
| Current Rating | 2A (inferred) |
| Voltage Rating | 100V (inferred) |
| Place of Origin | Dongguan, Guangdong, China |
