1-25T-7-LT-NA
1.25mm Pitch GH-Compatible SMT Wafer Header Custom Poles (nP) Vertical SMD Board Header 1.25T-7-LT-nA
1.25mm pitch GH-compatible SMT board-side wafer header with custom pole count, tin-plated brass contacts, mates with GH housing; dimensional drawing included.

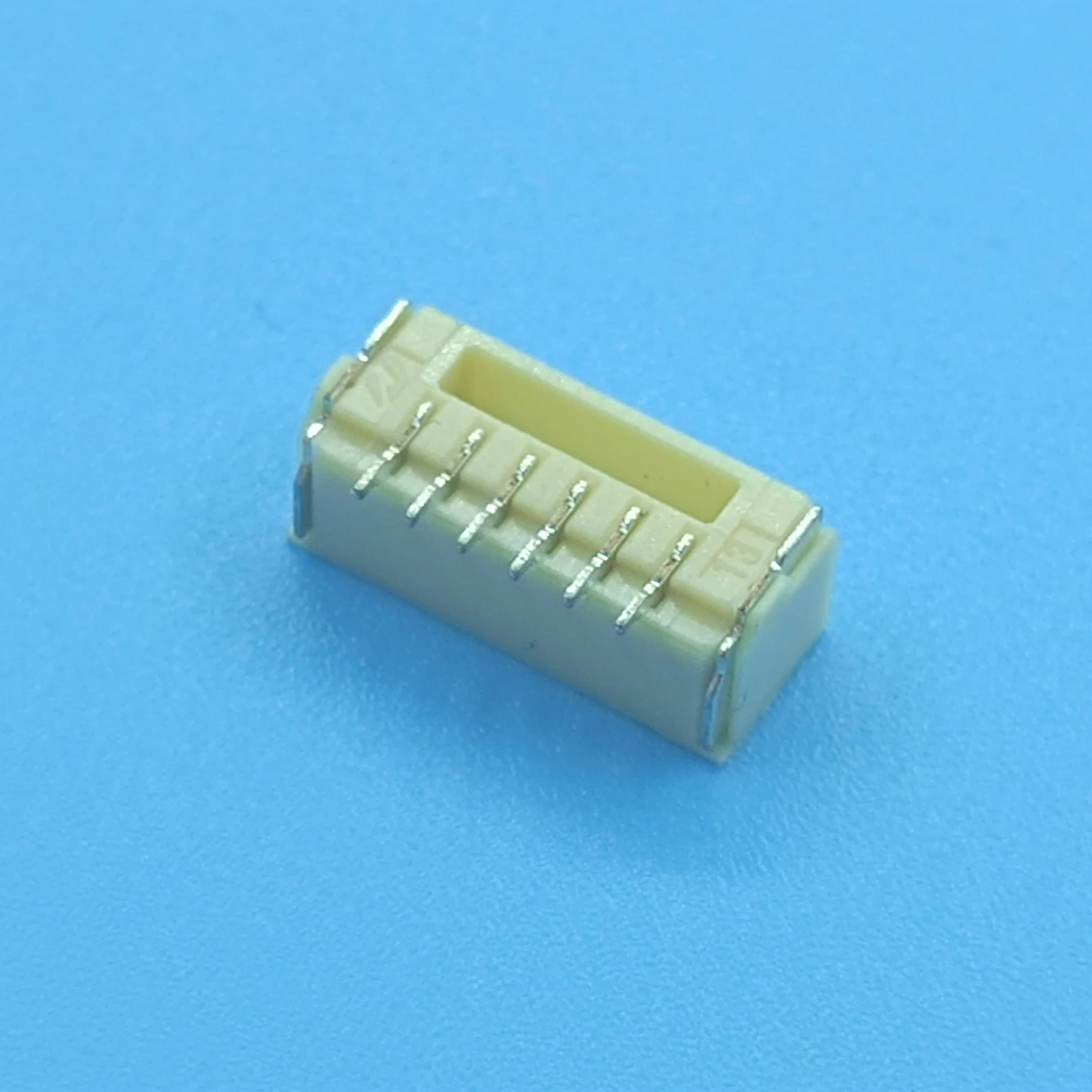

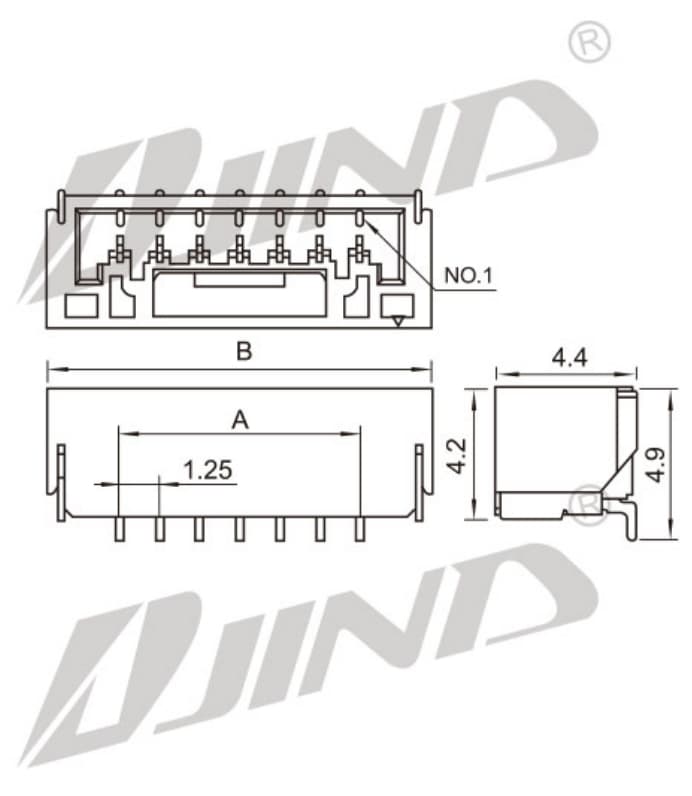

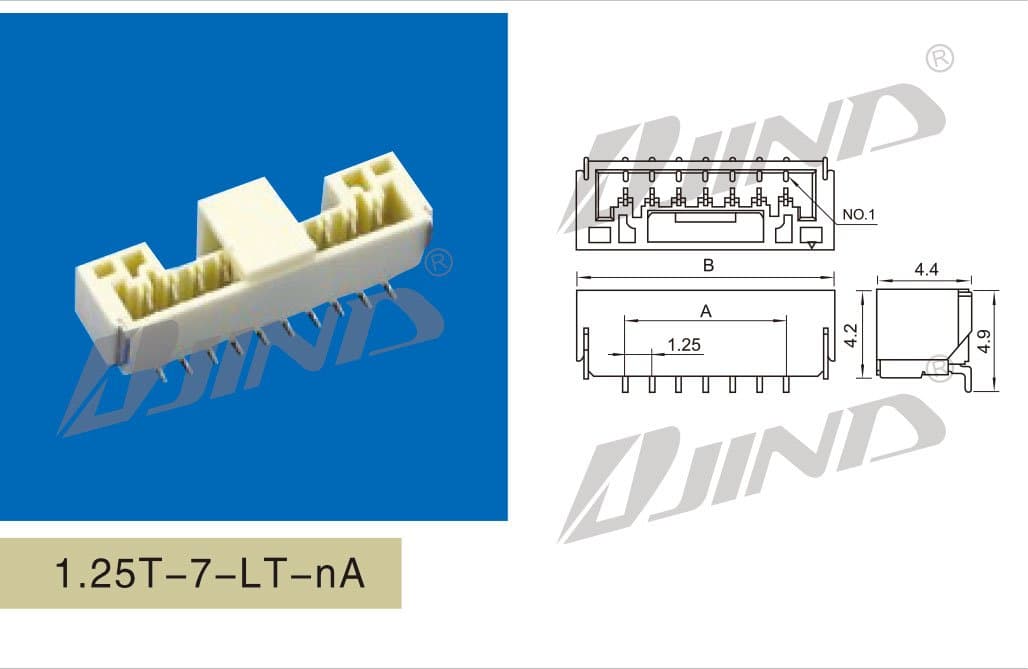

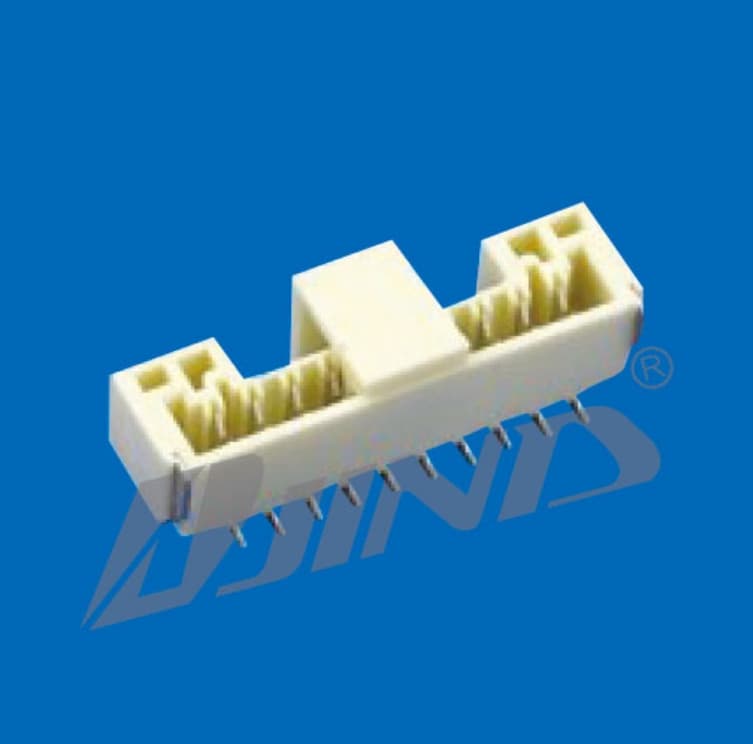

JINDA 1.25T-7-LT-nA is a 1.25mm pitch GH-compatible SMT board-side wafer header with customizable pole count (nP). PA66 nylon body with tin-plated brass contacts, SMD leads for reflow soldering, and a published dimensional drawing for PCB layout. Mates with GH housing and crimp terminals for stable contact and firm soldering. Used in LED lighting, appliances, security, industrial control, automotive and consumer electronics. ODM/OEM supported.
Specifications
| MOQ | MOQ 1000pcs |
|---|---|
| Type | Type SMT Board-side Wafer Header (Vertical) |
| Pitch | Pitch 1.25mm |
| Poles | Poles nP (customizable) |
| Series | Series 1.25T-7-LT GH-Compatible SMT |
| Material | Material PA66 Nylon + Tin-Plated Brass |
| Lead Time | Lead Time 7-15 days |
| Logistics | Logistics DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Polybag + Carton |
| Current Rating | Current Rating 1A (inferred) |
| Voltage Rating | Voltage Rating 50V (inferred) |
| Place of Origin | Place of Origin Dongguan, Guangdong, China |
