1-25T-7-LT-10A
1.25mm Pitch GH-Compatible SMT Wafer Header 10P Vertical SMD Board Header 1.25T-7-LT-10A
1.25mm pitch GH-compatible SMT board-side wafer header, 10P, tin-plated brass contacts, mates with GH housing for PCB-to-wire connection.

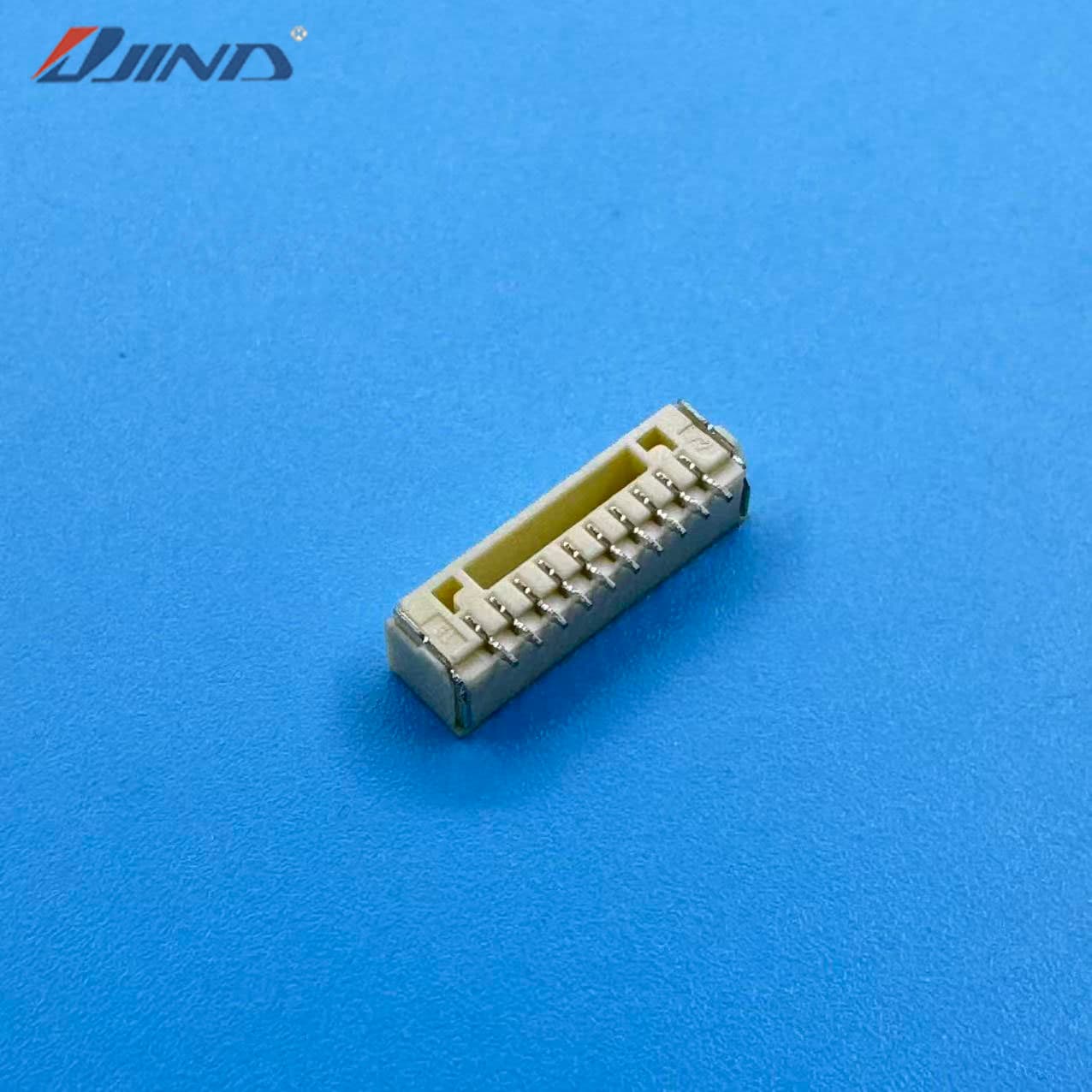

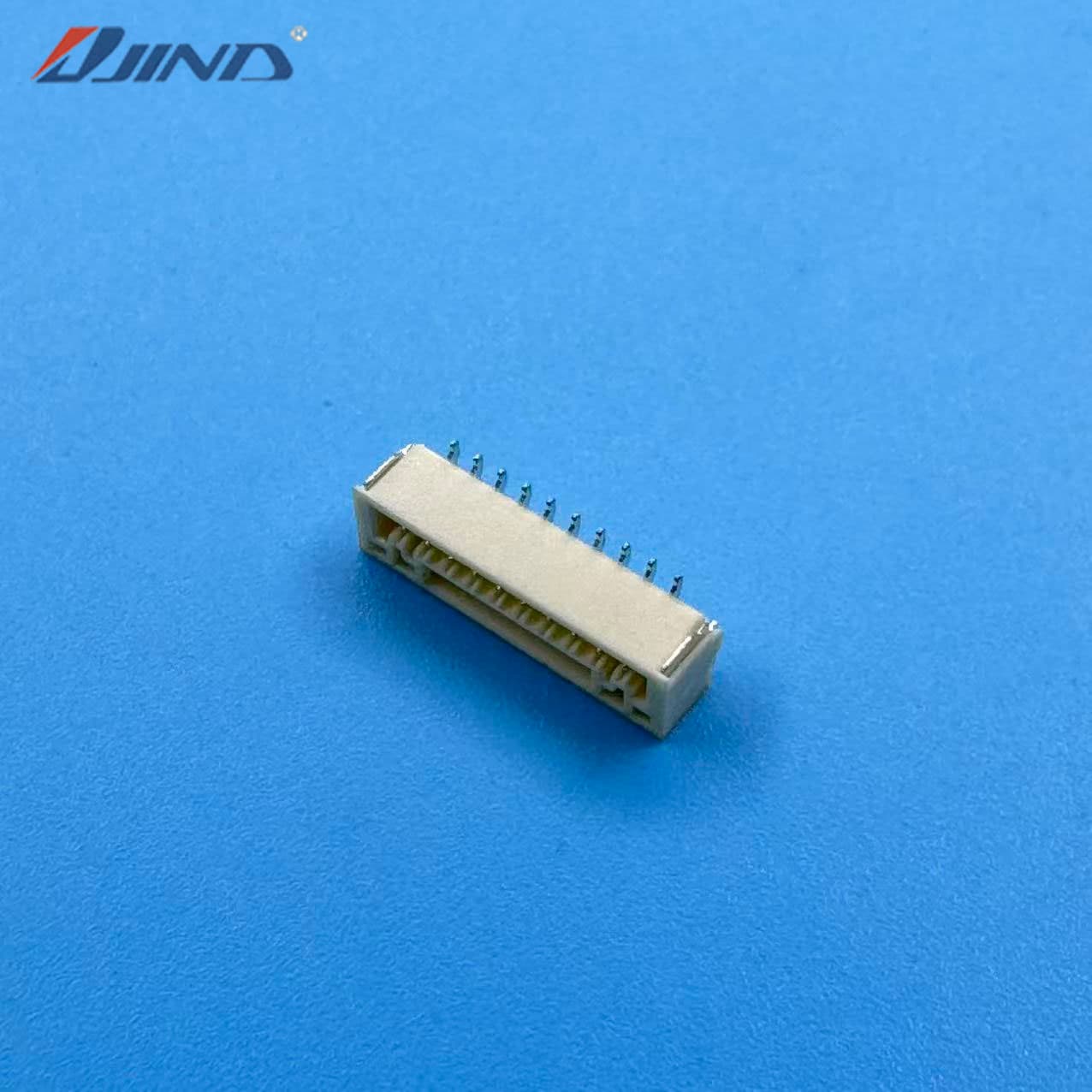

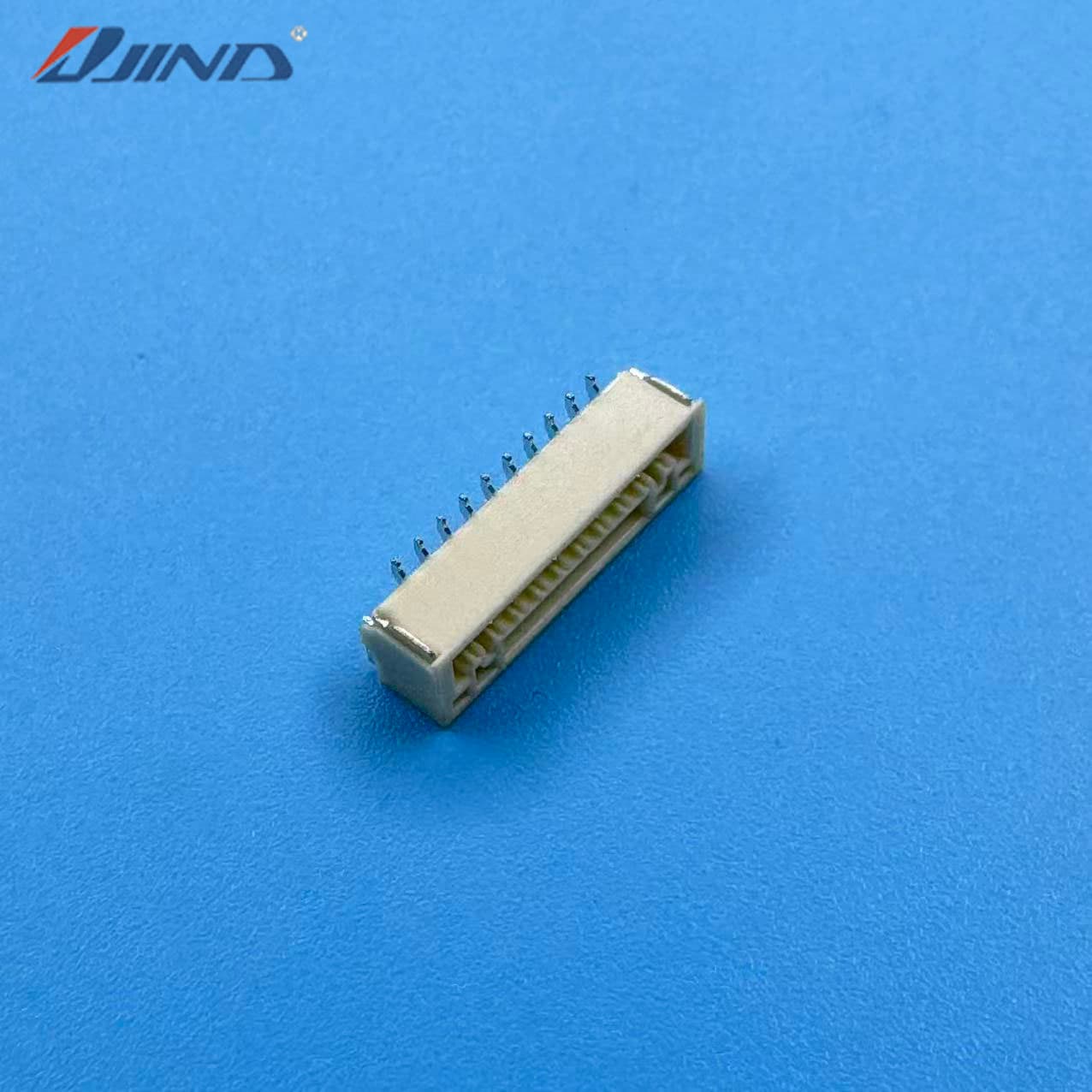

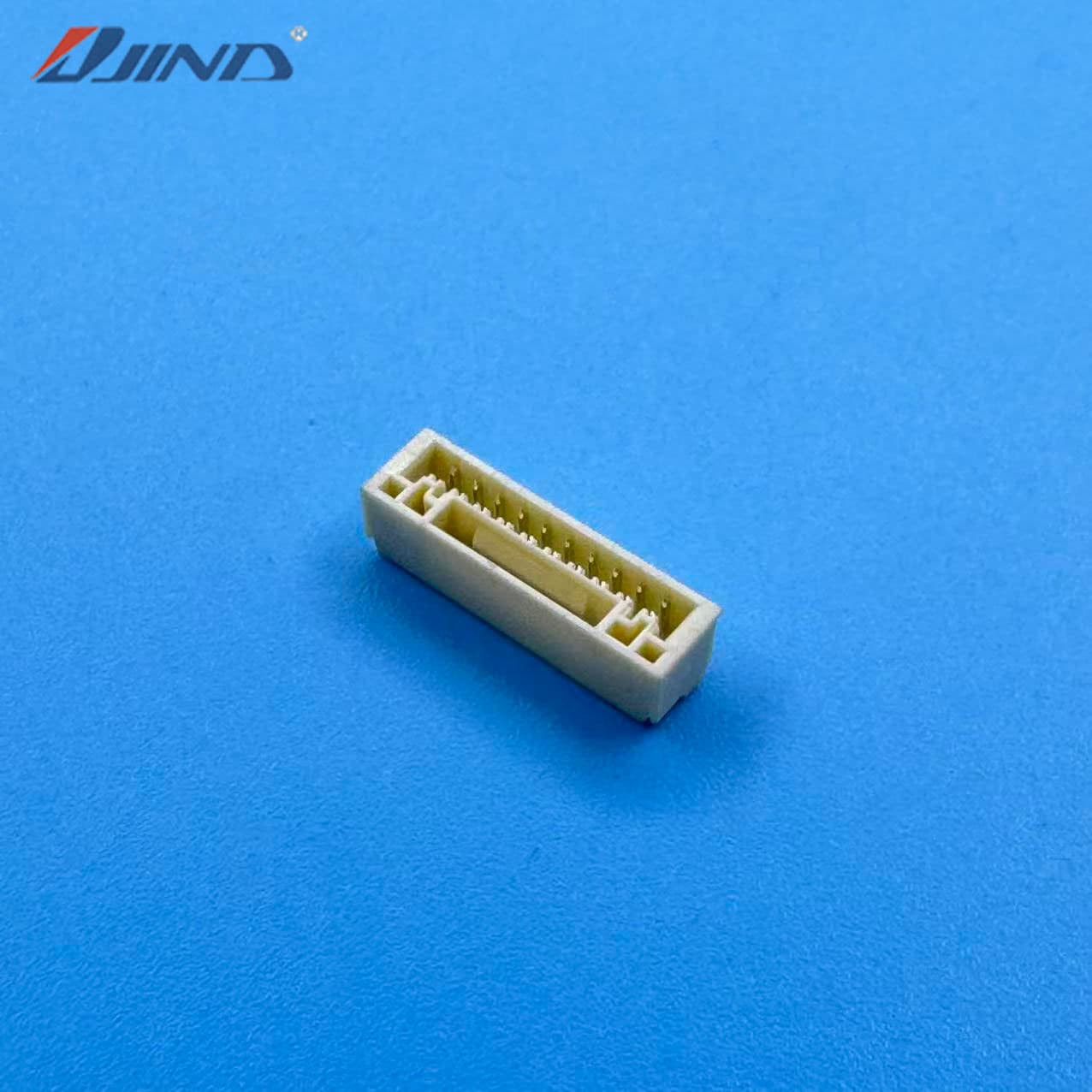

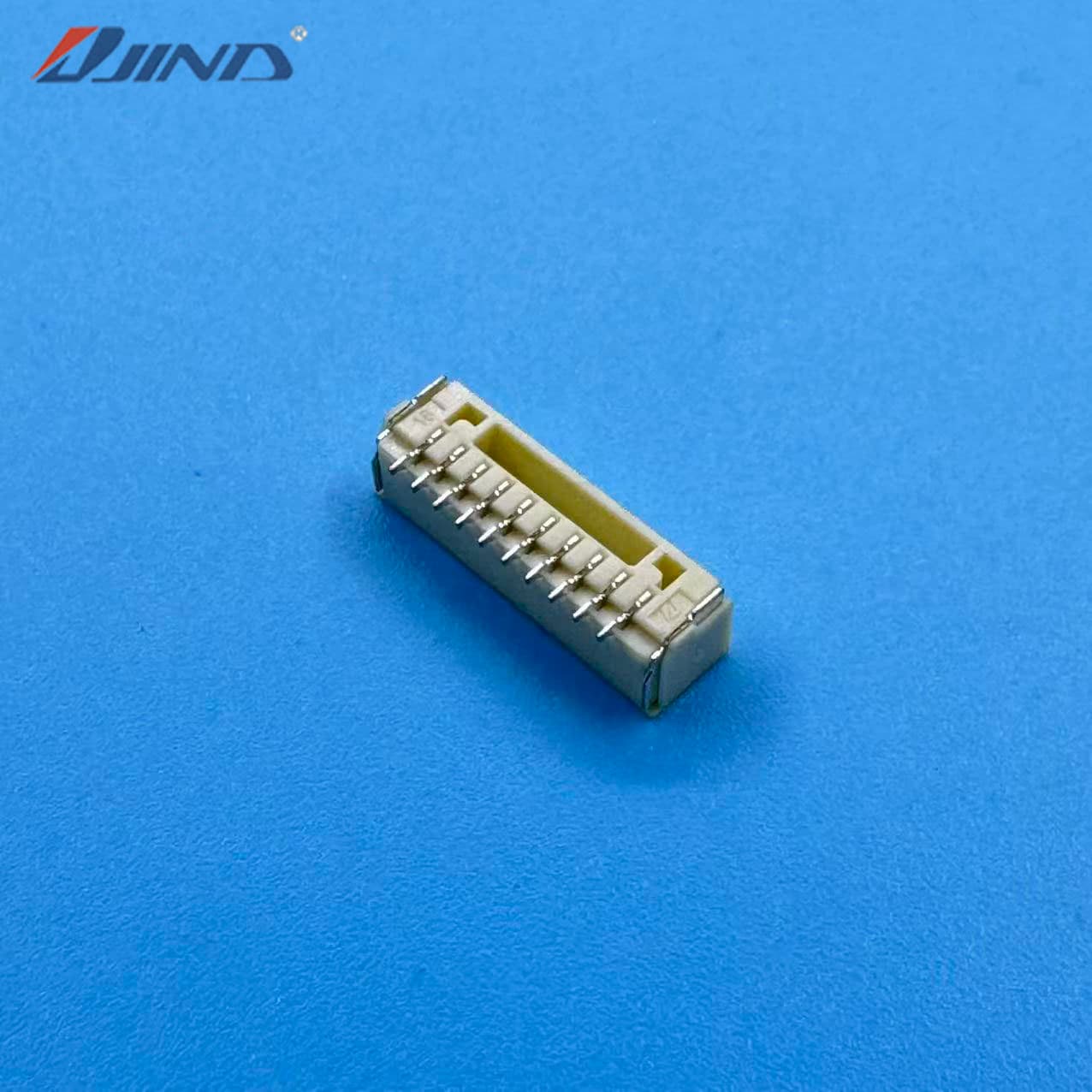

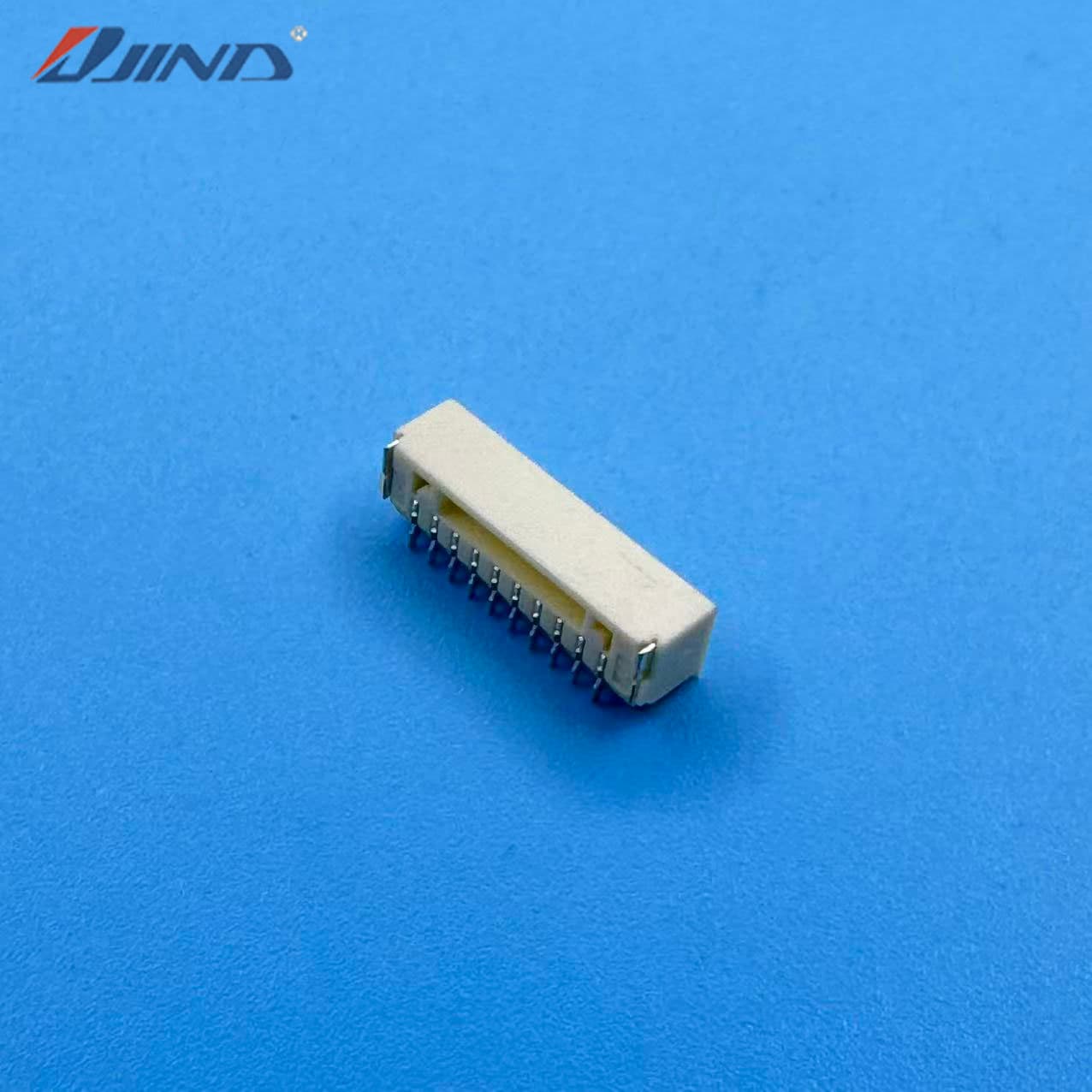

JINDA 1.25T-7-LT-10A is a 1.25mm pitch GH-compatible SMT board-side wafer header, 10P single row. PA66 nylon body with tin-plated brass contacts, SMD gull-wing leads for reflow soldering and metal retention clips for stronger mounting. It mates with the matching GH housing and crimp terminals. Suitable for internal PCB-to-wire connections in LED lighting, home appliances, security, industrial control, automotive and consumer electronics. ODM/OEM supported.
Specifications
| MOQ | MOQ 1000pcs |
|---|---|
| Type | Type SMT Board-side Wafer Header (Vertical) |
| Pitch | Pitch 1.25mm |
| Poles | Poles 10P |
| Series | Series 1.25T-7-LT GH-Compatible SMT |
| Material | Material PA66 Nylon + Tin-Plated Brass |
| Lead Time | Lead Time 7-15 days |
| Logistics | Logistics DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Polybag + Carton |
| Current Rating | Current Rating 1A (inferred) |
| Voltage Rating | Voltage Rating 50V (inferred) |
| Place of Origin | Place of Origin Dongguan, Guangdong, China |
