1-25T-1-WT-2A

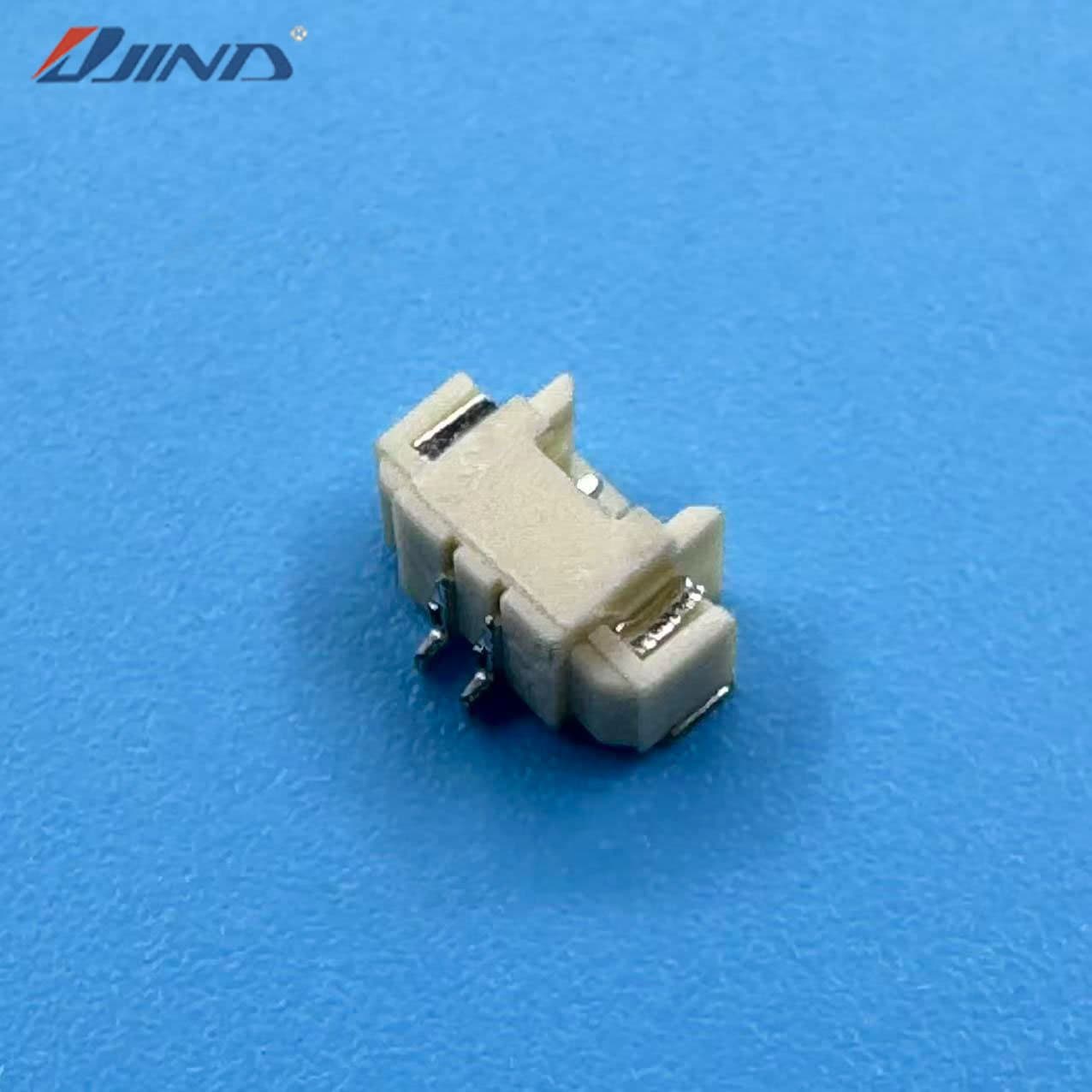

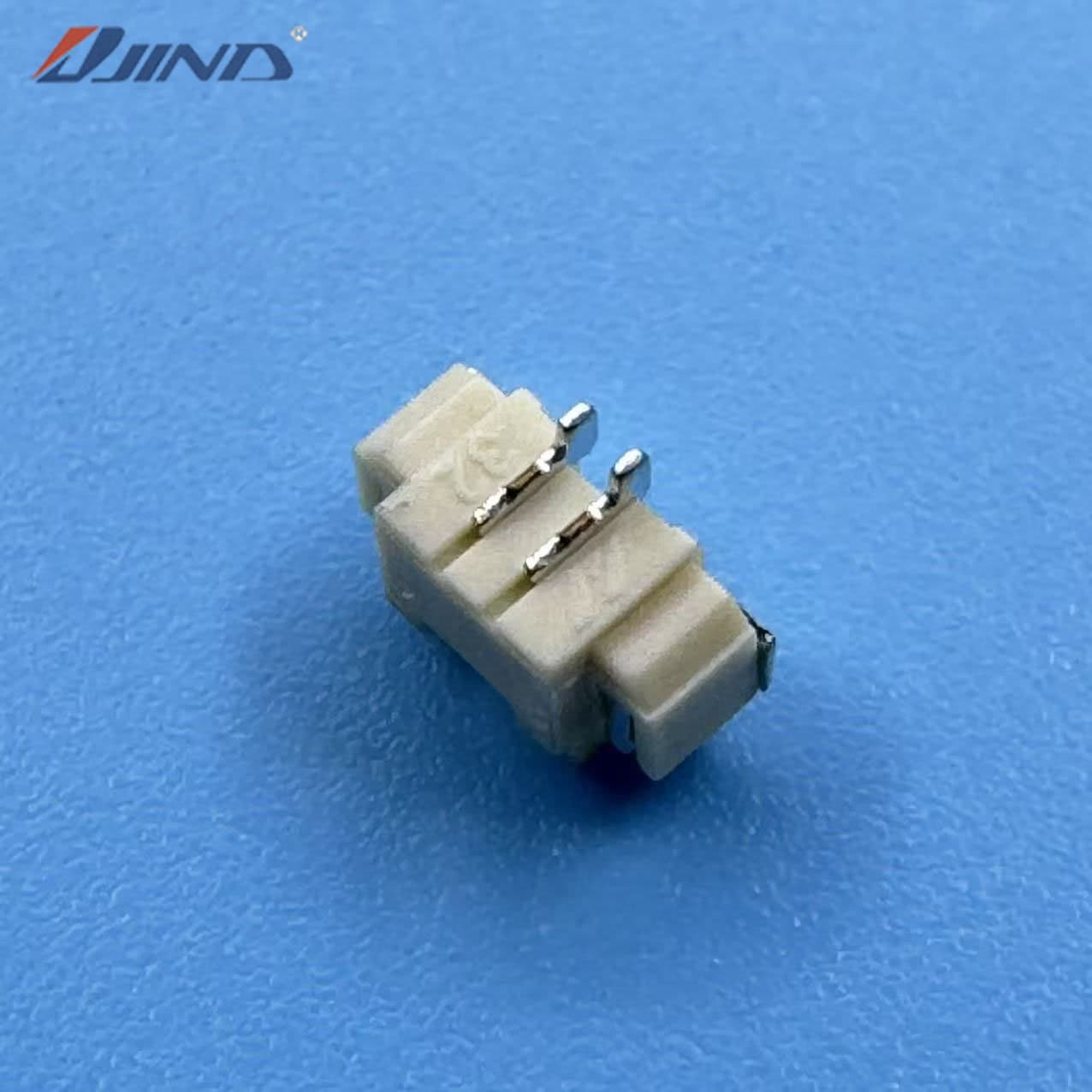

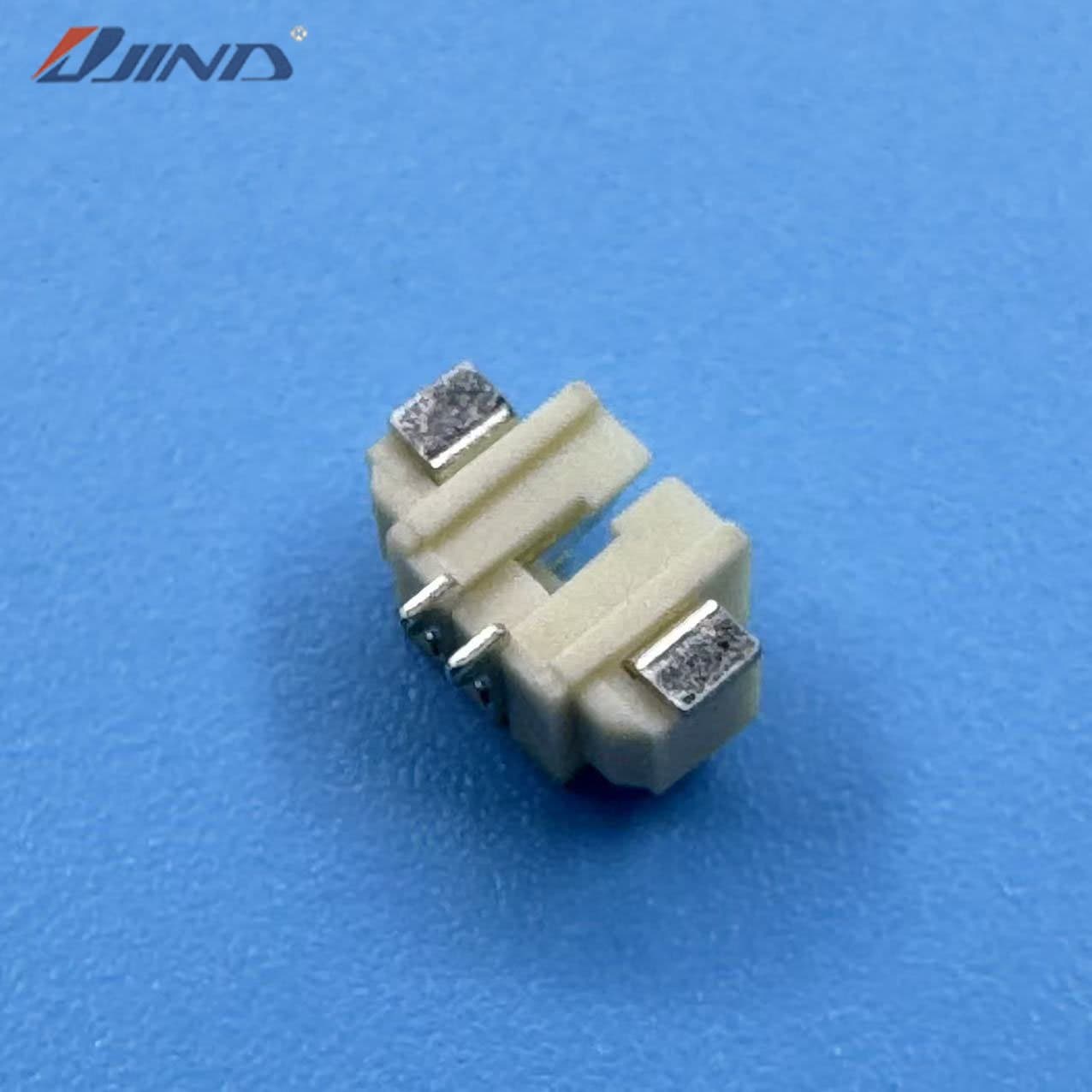

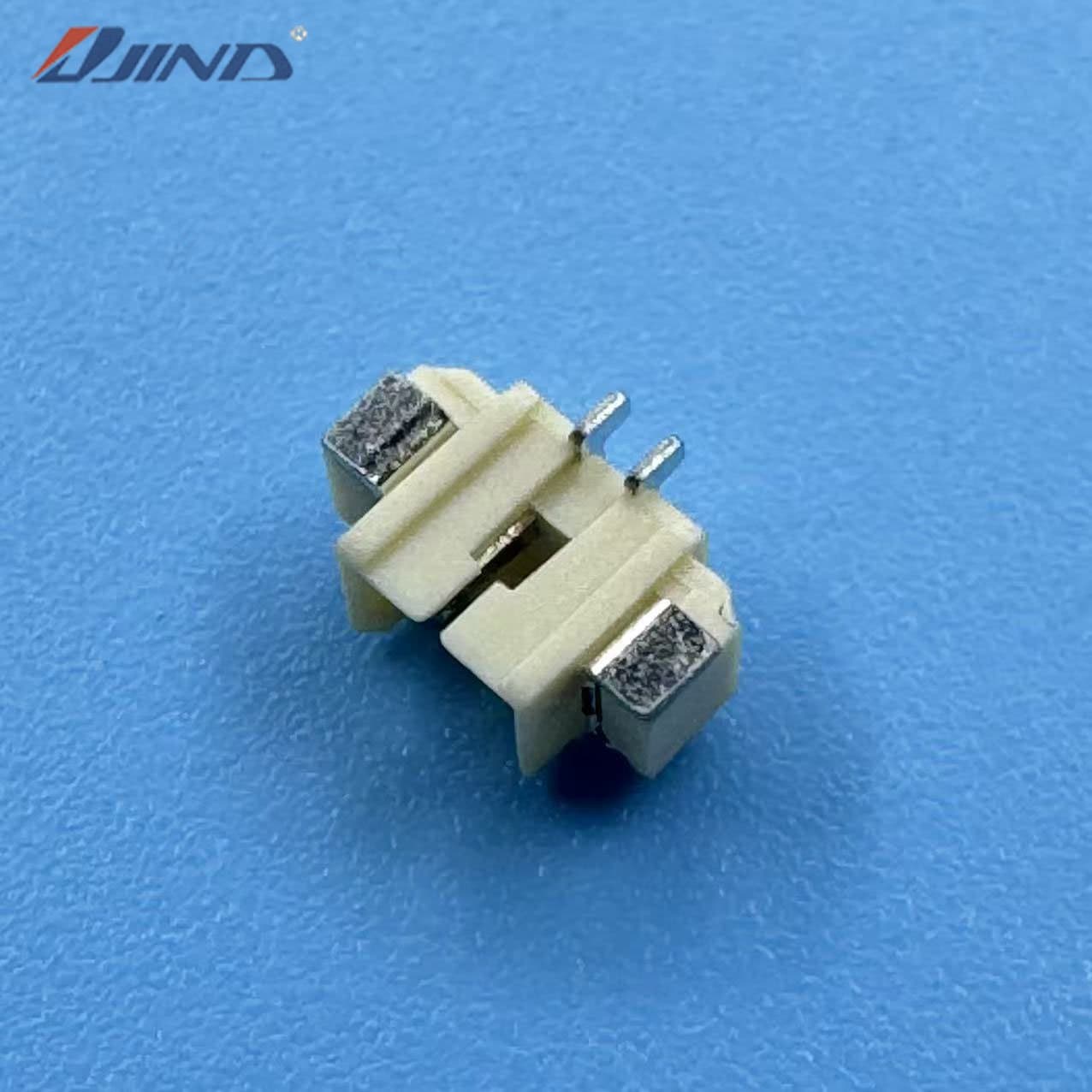

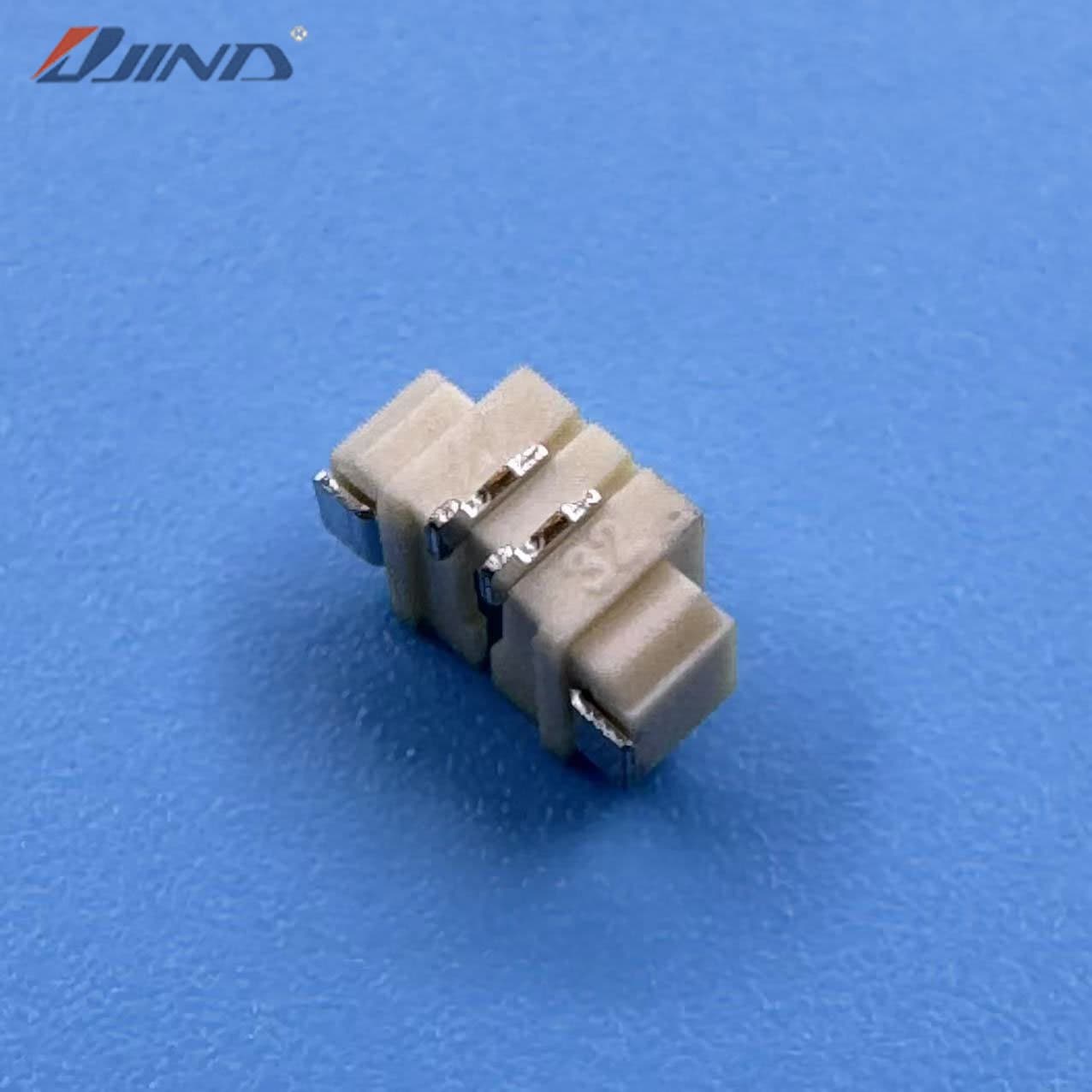

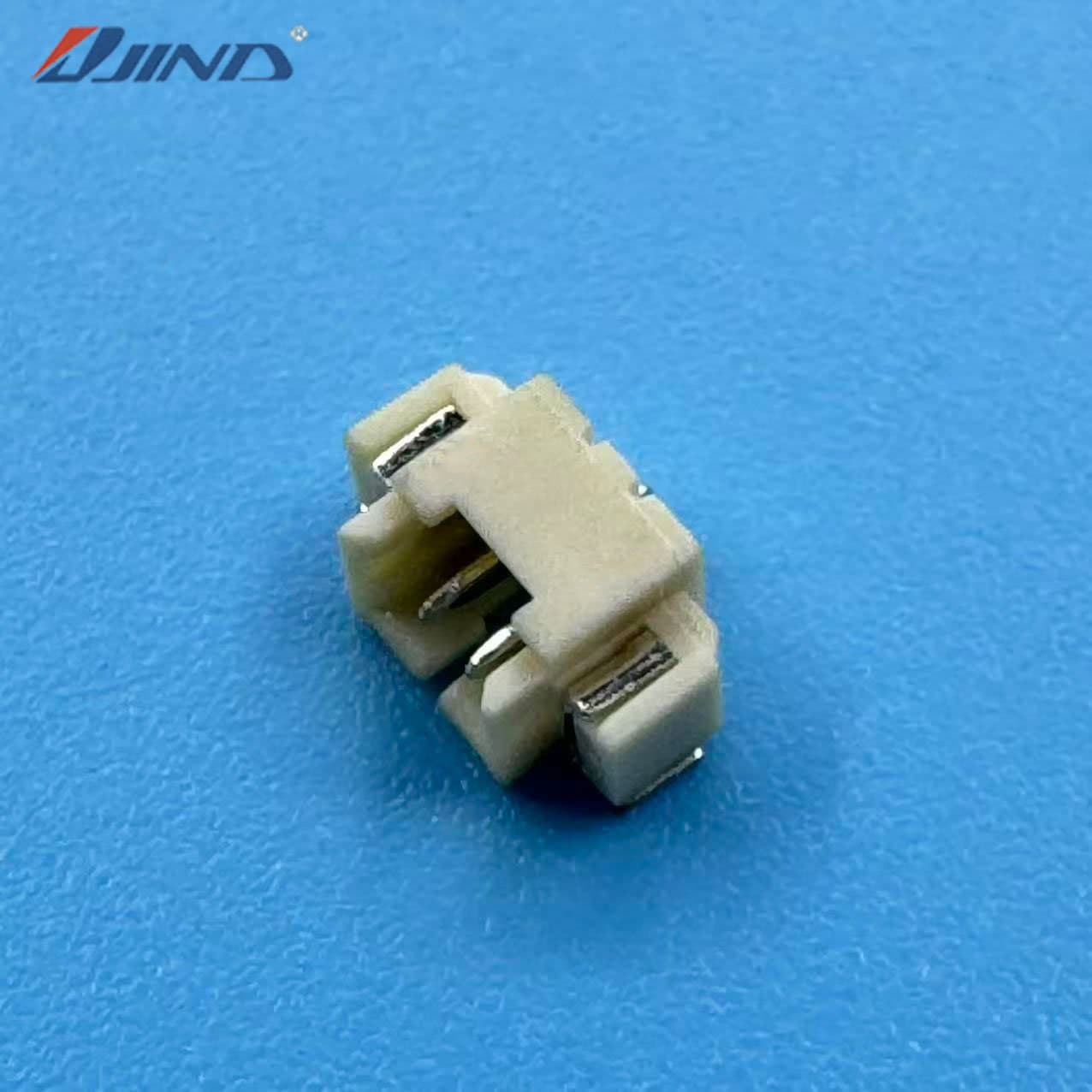

1.25mm Pitch Right-Angle Wire-to-Board Male Header 2P 1.25T-1-WT-2A
1.25mm pitch 2P right-angle SMT male header, low-profile for horizontal power, battery and small-device leads.
This is a 1.25mm pitch wire-to-board board-mount connector from the 1.25T series, featuring tin-plated brass contacts and a PA66 nylon housing for reliable contact and smooth mating. It suits internal wiring in LED lighting, home appliances, security equipment, industrial control and automotive electronics, supports board assembly, and is customizable in pole count and color under ODM/OEM.
Specifications
| MOQ | MOQ: 1000pcs |
|---|---|
| Type | Type: Right-angle board-mount (WT, SMT) |
| Pitch | Pitch: 1.25mm |
| Poles | Poles: 2P |
| Series | Series: 1.25T |
| Material | Material: Tin-plated brass contacts + PA66 nylon housing (estimated) |
| Lead Time | Lead Time: 7-15 days |
| Logistics | Logistics: DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Packaging: Polybag + Carton |
| Current Rating | Current Rating: 1A AC/DC (estimated) |
| Voltage Rating | Voltage Rating: 50V AC/DC (estimated) |
| Place of Origin | Place of Origin: Dongguan, Guangdong, China |
