1-25T-1-WT

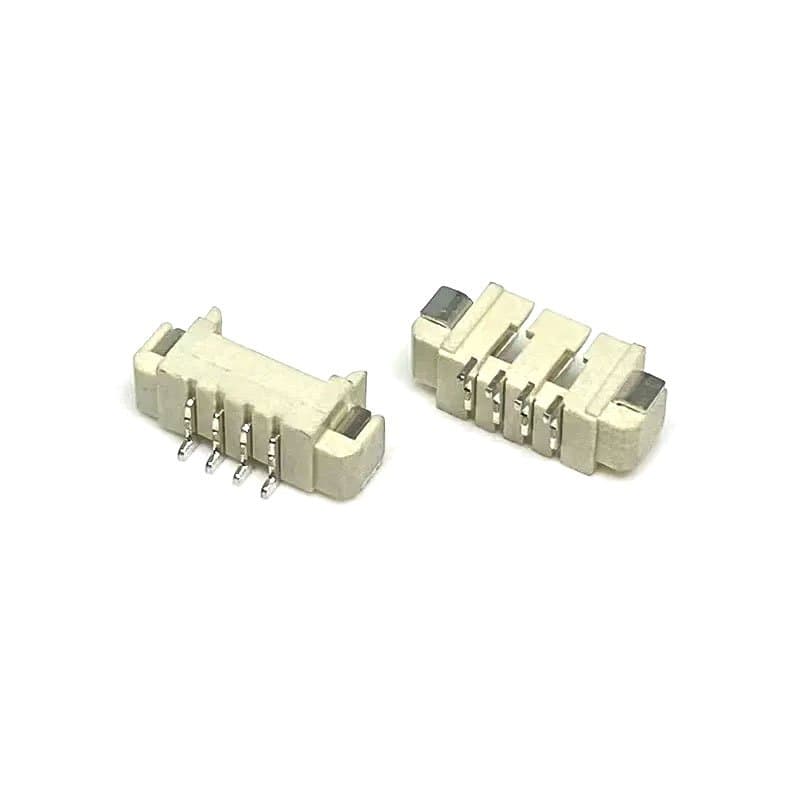

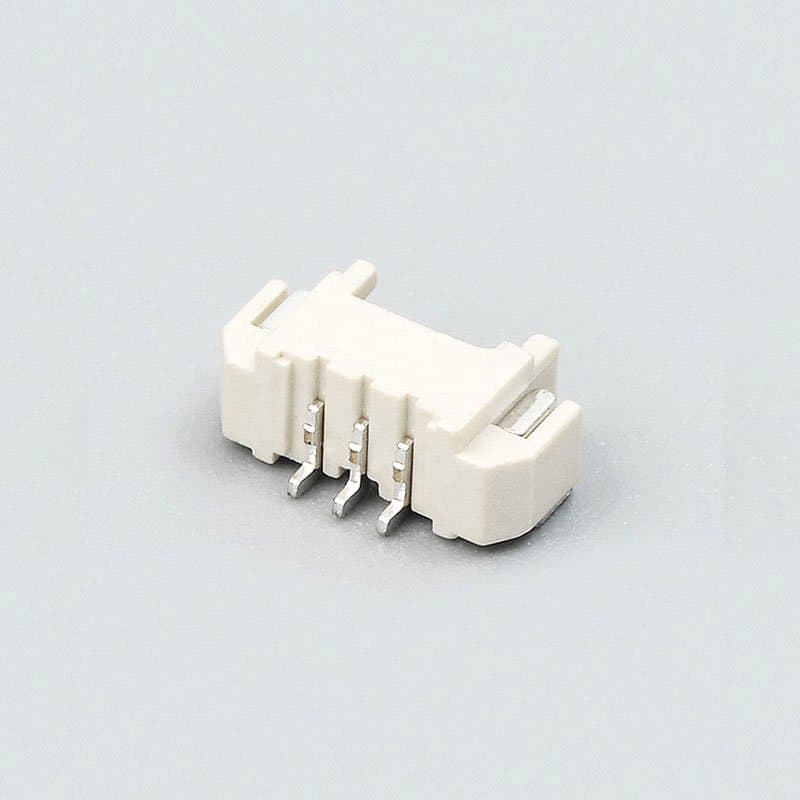

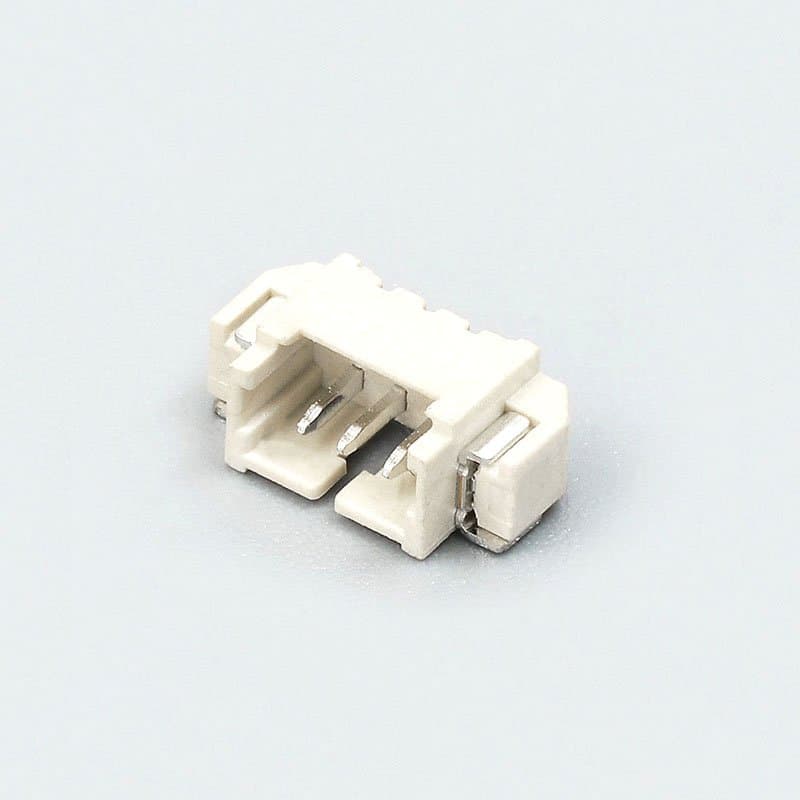

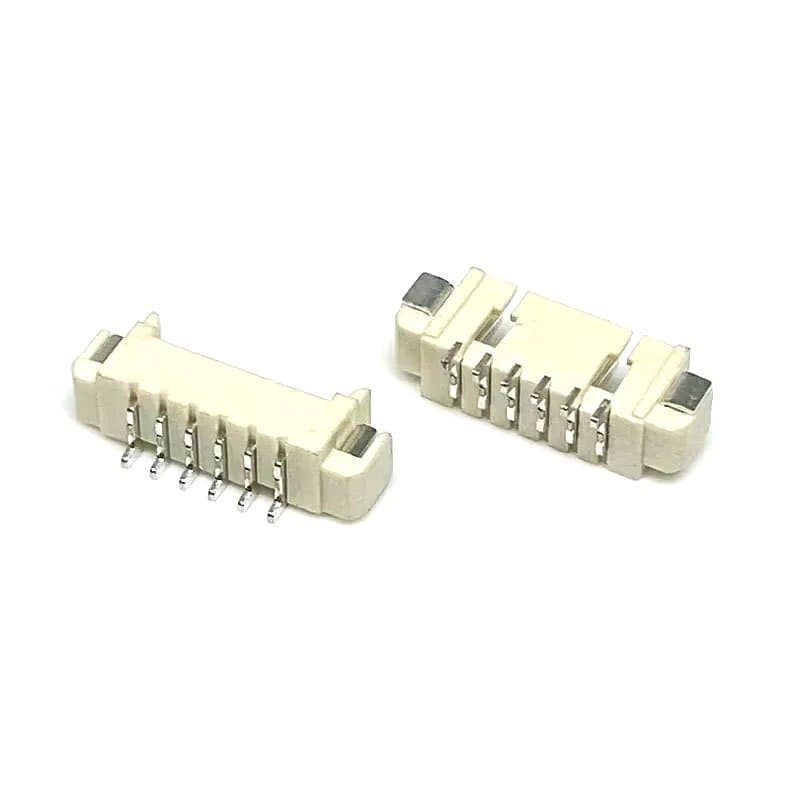

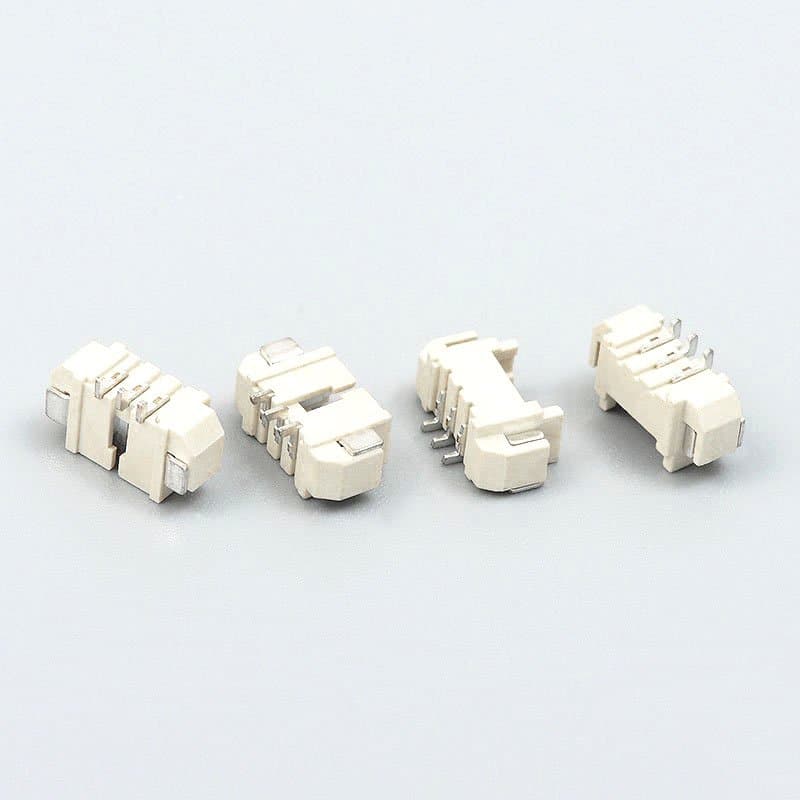

1.25mm Pitch Right-Angle Wire-to-Board Male Header Multi-Pole Optional 1.25T-1-WT
1.25mm pitch right-angle SMT wire-to-board male header saving board height for slim devices and LED strip wiring.
This is a 1.25mm pitch wire-to-board board-mount connector from the 1.25T series, featuring tin-plated brass contacts and a PA66 nylon housing for reliable contact and smooth mating. It suits internal wiring in LED lighting, home appliances, security equipment, industrial control and automotive electronics, supports board assembly, and is customizable in pole count and color under ODM/OEM.
Specifications
| MOQ | MOQ: 1000pcs |
|---|---|
| Type | Type: Right-angle board-mount (WT, SMT) |
| Pitch | Pitch: 1.25mm |
| Poles | Poles: 2-4P optional (per images; not labeled in folder) |
| Series | Series: 1.25T |
| Material | Material: Tin-plated brass contacts + PA66 nylon housing (estimated) |
| Lead Time | Lead Time: 7-15 days |
| Logistics | Logistics: DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Packaging: Polybag + Carton |
| Current Rating | Current Rating: 1A AC/DC (estimated) |
| Voltage Rating | Voltage Rating: 50V AC/DC (estimated) |
| Place of Origin | Place of Origin: Dongguan, Guangdong, China |
