1-25T-1-LT-NA

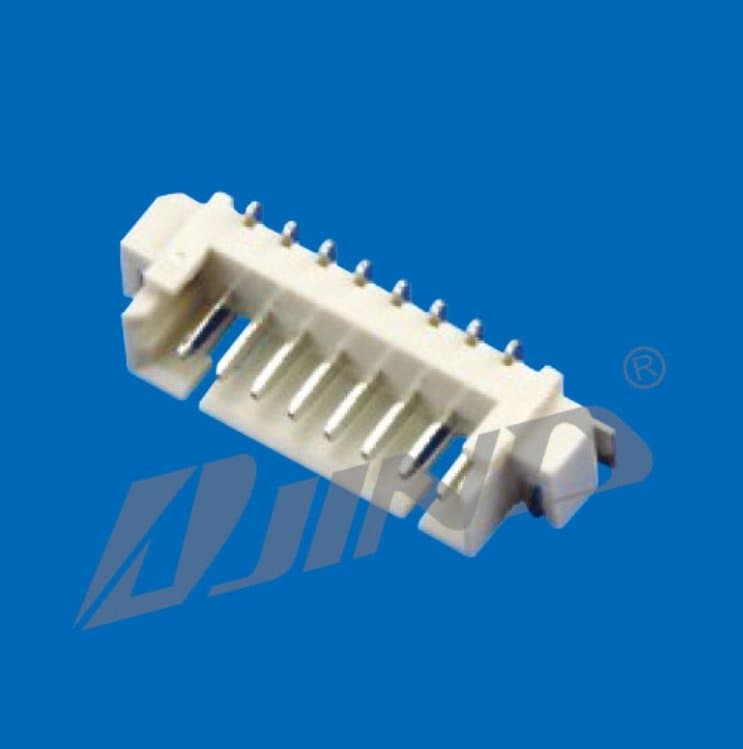

1.25mm Pitch Vertical Wire-to-Board Male Header Customizable nP 1.25T-1-LT-nA
1.25mm pitch customizable nP vertical wire-to-board male header, pole count made to order for varied internal board-to-wire connections.
This is a 1.25mm pitch wire-to-board board-mount connector from the 1.25T series, featuring tin-plated brass contacts and a PA66 nylon housing for reliable contact and smooth mating. It suits internal wiring in LED lighting, home appliances, security equipment, industrial control and automotive electronics, supports board assembly, and is customizable in pole count and color under ODM/OEM.
Specifications
| MOQ | MOQ: 1000pcs |
|---|---|
| Type | Type: Vertical board-mount (LT), customizable poles |
| Pitch | Pitch: 1.25mm |

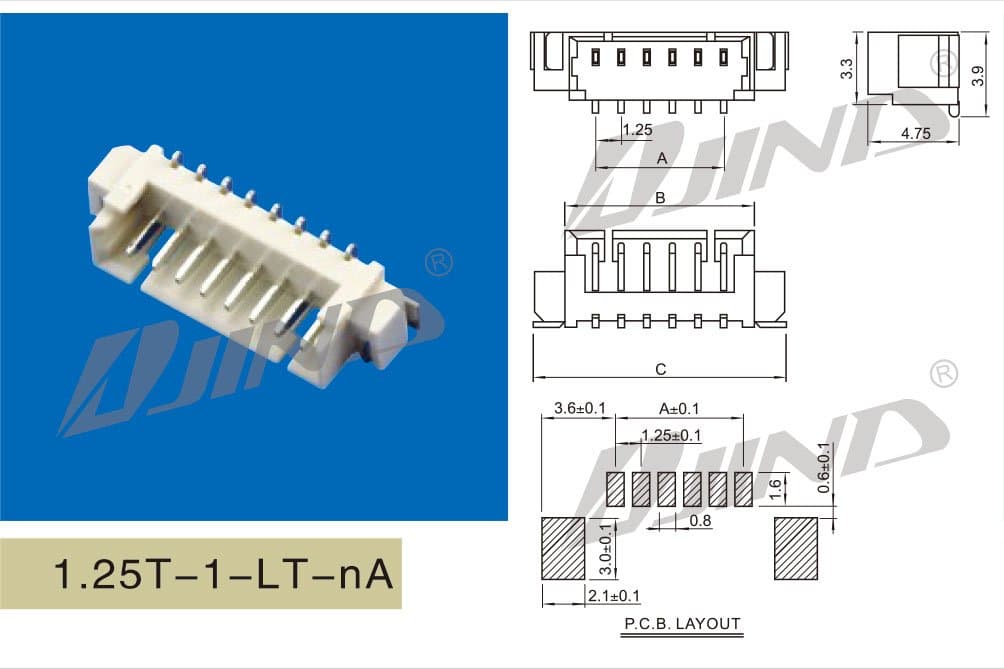

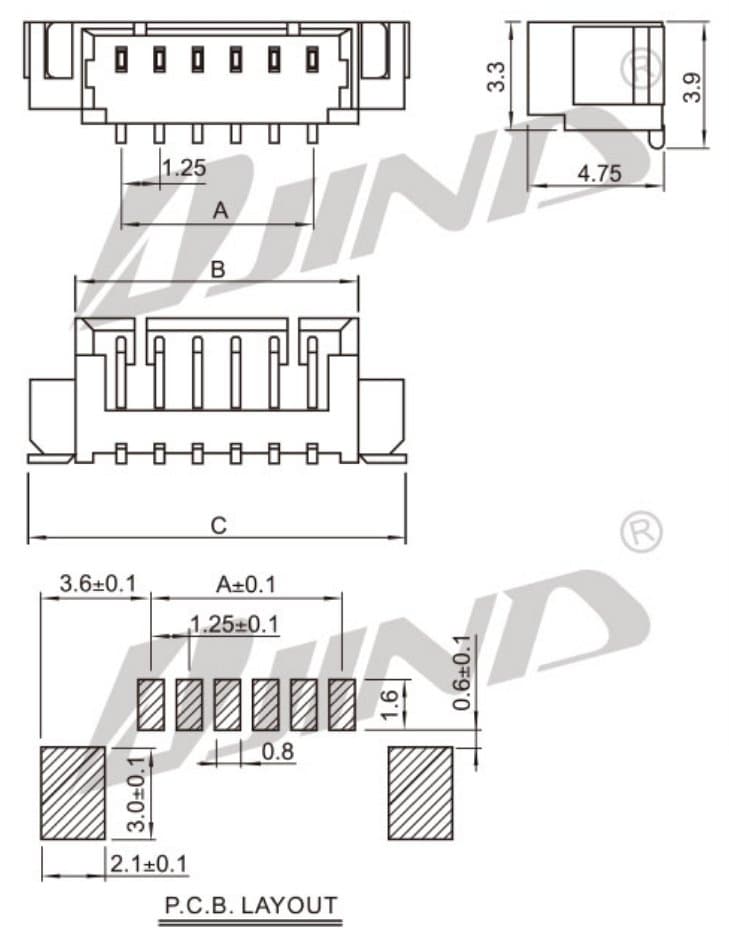

| Poles | Poles: nP customizable (6P shown in drawing) |
| Series | Series: 1.25T |
| Material | Material: Tin-plated brass contacts + PA66 nylon housing (estimated) |
| Lead Time | Lead Time: 7-15 days |
| Logistics | Logistics: DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Packaging: Polybag + Carton |
| Current Rating | Current Rating: 1A AC/DC (estimated) |
| Voltage Rating | Voltage Rating: 50V AC/DC (estimated) |
| Place of Origin | Place of Origin: Dongguan, Guangdong, China |
