1-0T-1-WT-2XNA-SH
1.0mm Pitch Right-Angle SMT Dual-Row Male Wafer Header 2xnA(SH) 1.0T-1-WT-2xnA(SH)

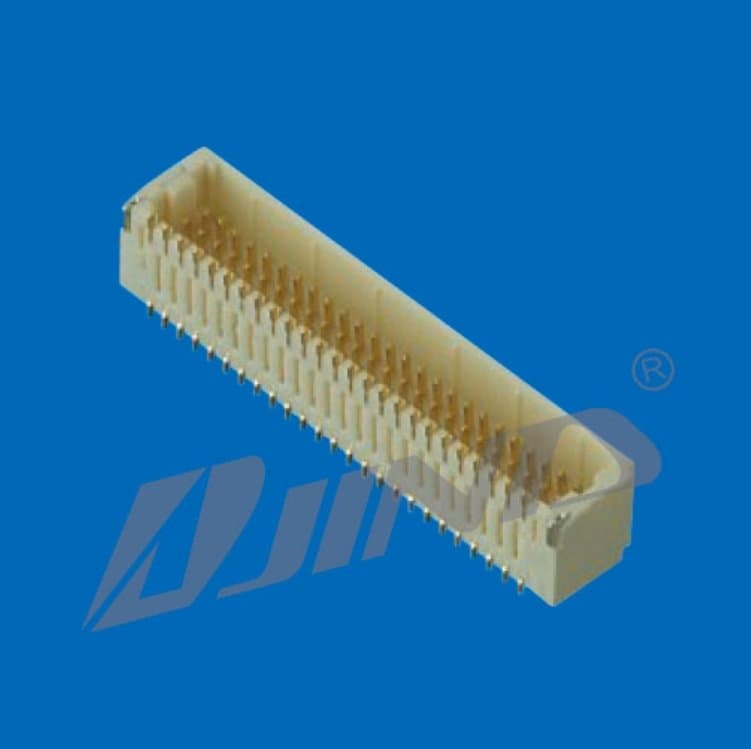

1.0mm pitch right-angle SMT (WT) dual-row male wafer header 2xnA(SH) for surface-mount wire-to-board connection.

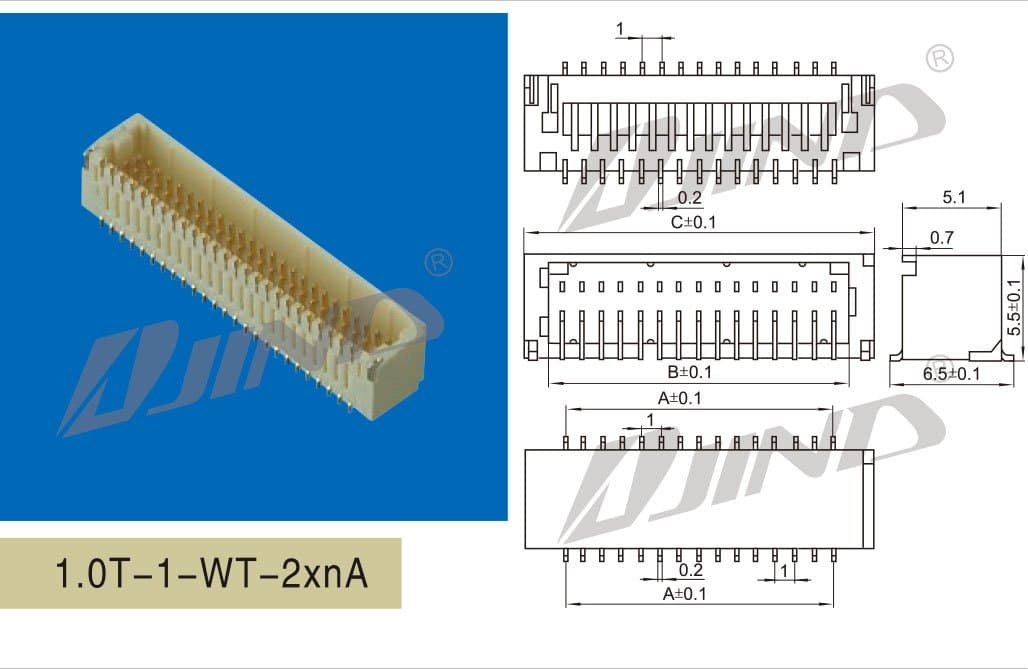

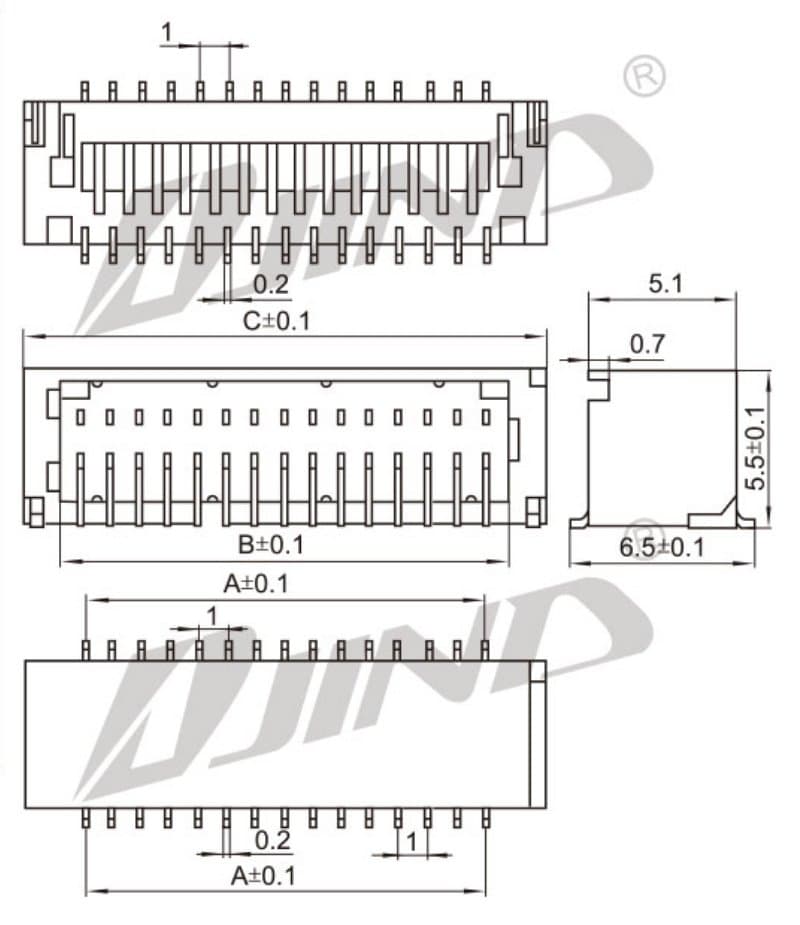

JINDA 1.0T-1-WT-2xnA(SH) is a 1.0mm pitch right-angle SMT (WT) dual-row male wafer header, 2xnA with selectable positions, surface-mounted to PCB and mating with wire-side housings. Dimensional drawing included. Suitable for internal wire-to-board connections in LED lighting, home appliances, security monitoring, industrial control, automotive electronics and consumer electronics. JINDA maintains strict quality control and supports ODM/OEM customization.
Specifications
| MOQ | MOQ 1000pcs |
|---|---|
| Type | Type Right-Angle SMT (WT) Dual-Row Male Wafer |
| Pitch | Pitch 1.0mm |
| Poles | Poles 2xnA (dual row, optional positions) |
| Series | Series 1.0T(SH) |
| Material | Material PA66 Nylon + Gold-Plated Brass Contact |
| Lead Time | Lead Time 7-15 days |
| Logistics | Logistics DHL/UPS/FedEx |
| ODM & OEM | ODM & OEM Supported |
| Packaging | Polybag + Carton |
| Current Rating | Current Rating 1A (inferred) |
| Voltage Rating | Voltage Rating 50V (inferred) |
| Place of Origin | Place of Origin Dongguan, Guangdong, China |
