1-5T-2-NA

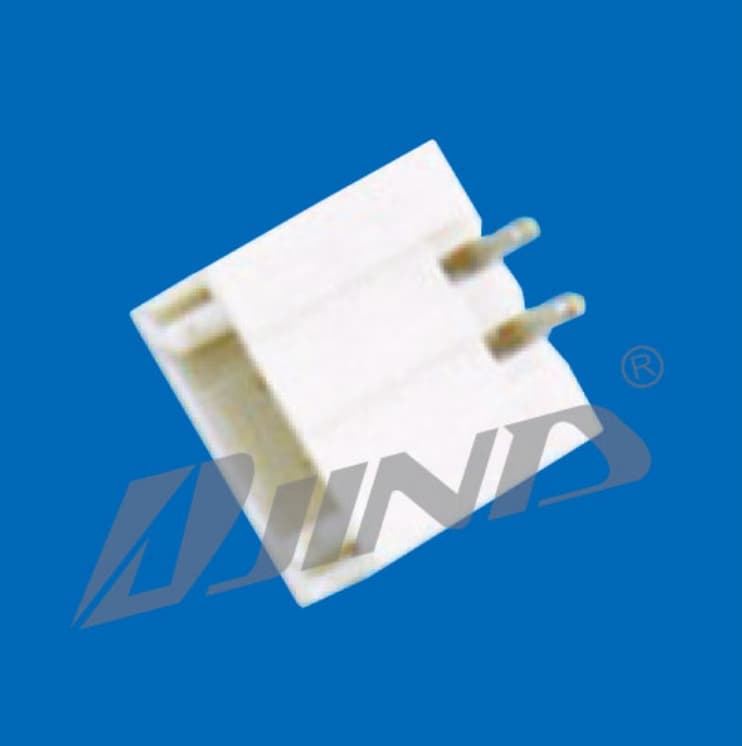

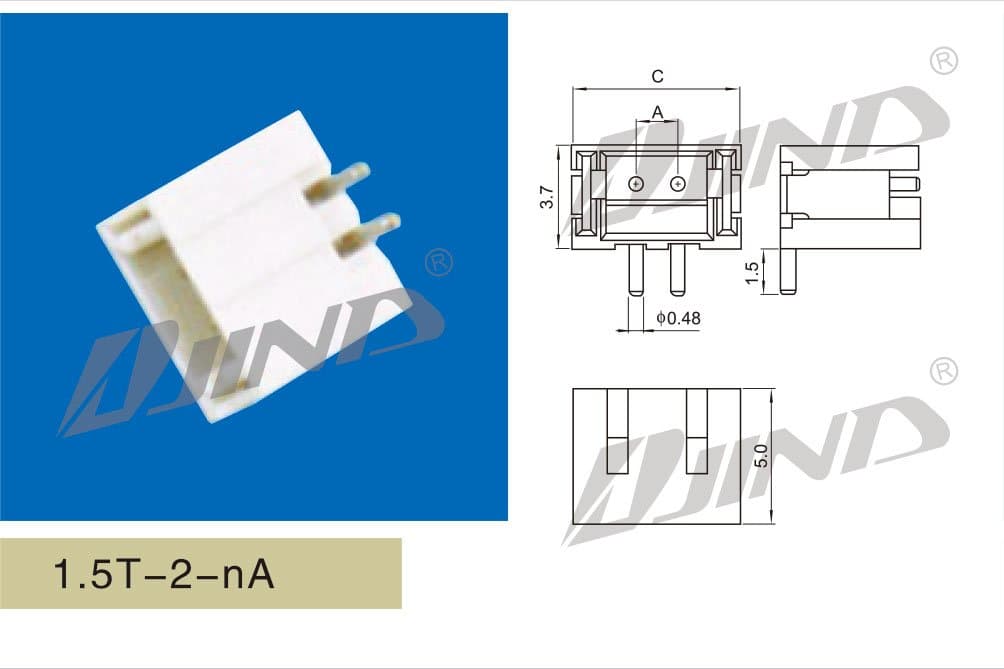

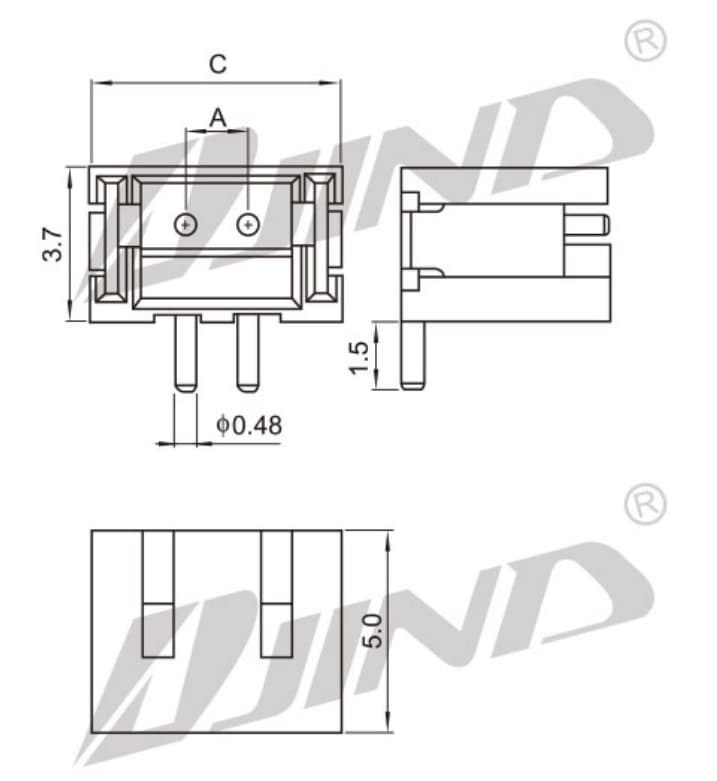

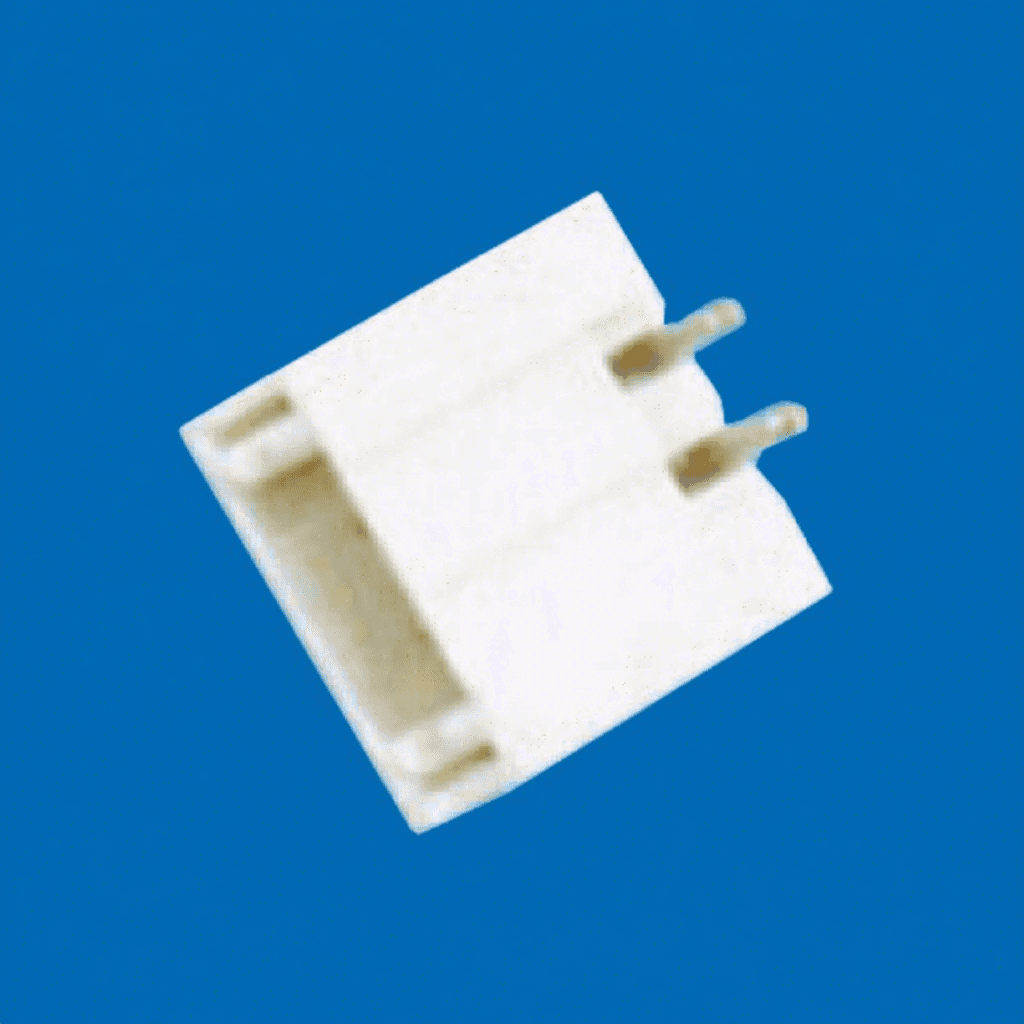

1.5mm Pitch 2P Wire-to-Board Plug Housing 1.5T-2-nA
1.5mm pitch 2P white wire-to-board plug housing for crimp terminals, insulated and latching.
The JINDA 1.5T-2-nA is a 1.5mm pitch 2P white wire-to-board plug housing with a heat-resistant PA66 nylon body; tin-plated brass female terminals are crimped to the wire and mated to the board header, with an anti-slip latch. It is widely used in LED strips, power adapters, small appliances, toys and security harnesses; easy to assemble and insulated. ODM/OEM customization by pole count and wire order is supported. MOQ 1000pcs, lead time 7-15 days, shipped by DHL/UPS/FedEx.
Specifications
| MOQ | 1000pcs |
|---|---|
| Type | Wire-to-board plug housing |
| Pitch | 1.5mm (inferred from series) |
| Poles | 2 Positions |
| Series | 1.5T-nA / Housing series |
| Material | PA66 nylon body (default, inferred) |
| Lead Time | 7-15 days |
| Logistics | DHL/UPS/FedEx |
| ODM & OEM | Supported, custom per drawing |
| Packaging | Polybag + Export Carton |
| Current Rating | 1A (inferred) |
| Voltage Rating | 50V (inferred) |
| Place of Origin | Dongguan, Guangdong, China |
